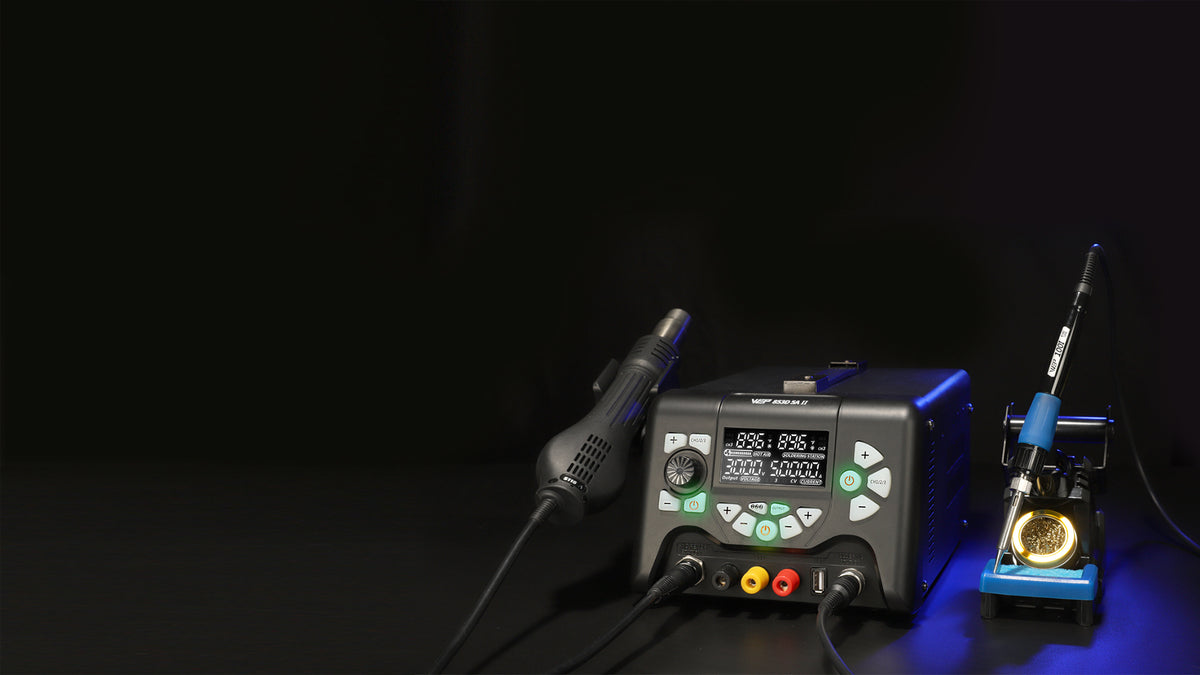

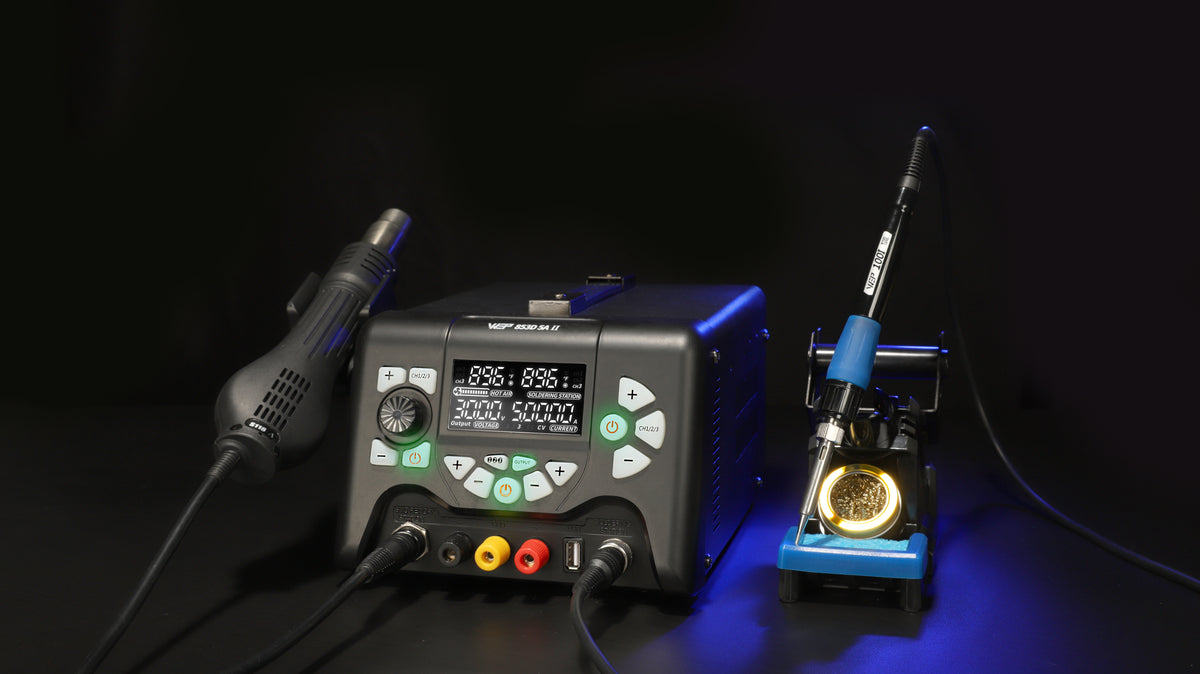

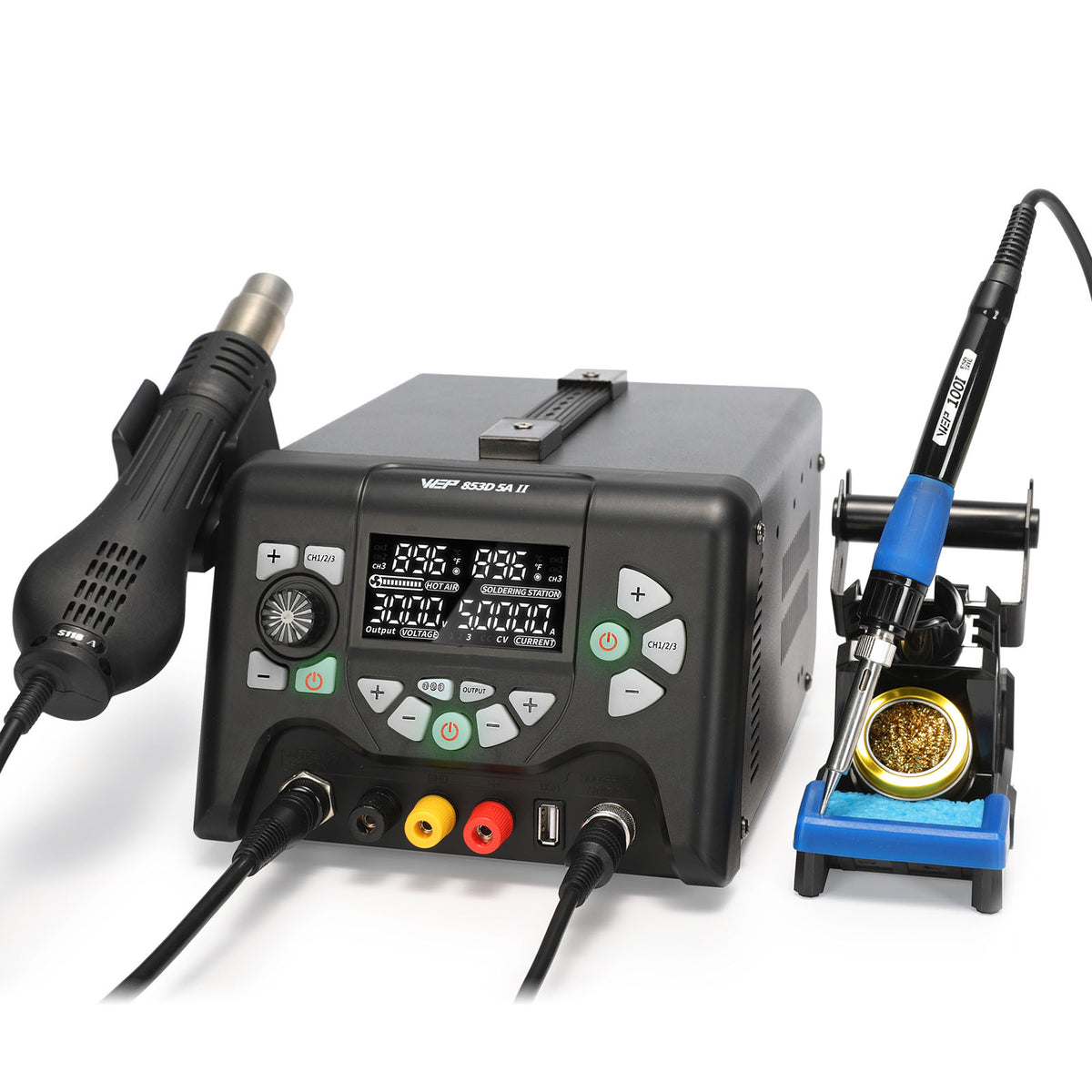

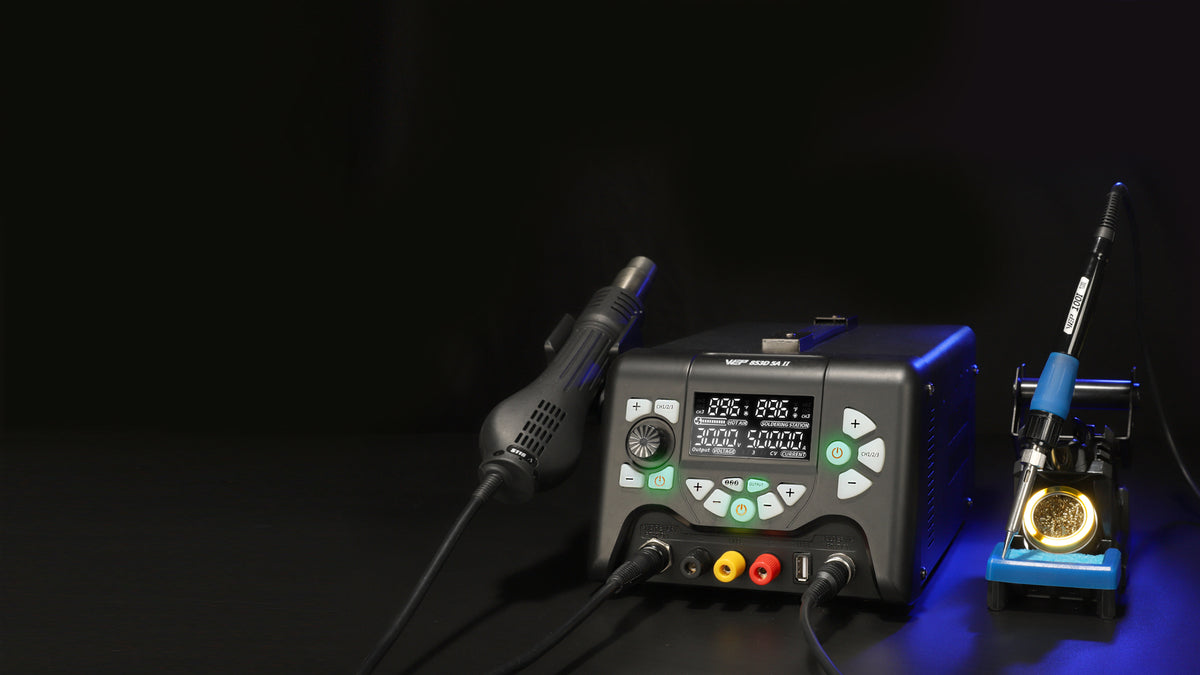

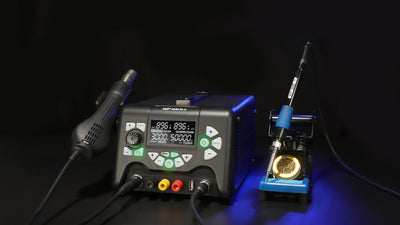

- Designed specifically for laptop, and mobile device rework & repair.
- This unit integrates a soldering station, hot air rework station, and DC power supply which are all integral when conducting a repair.

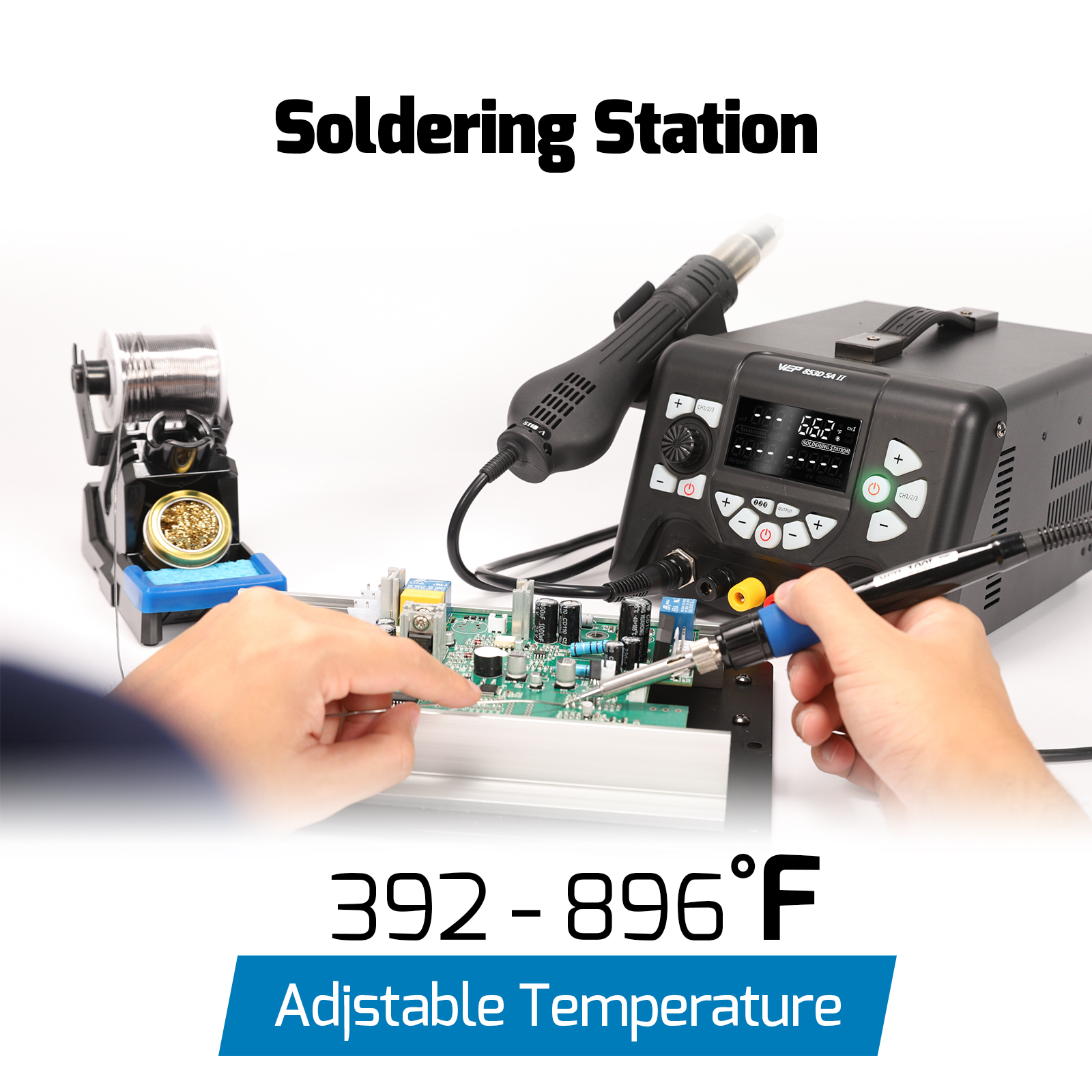

- Soldering temperature is adjustable from 392~896°F, with temperature control.

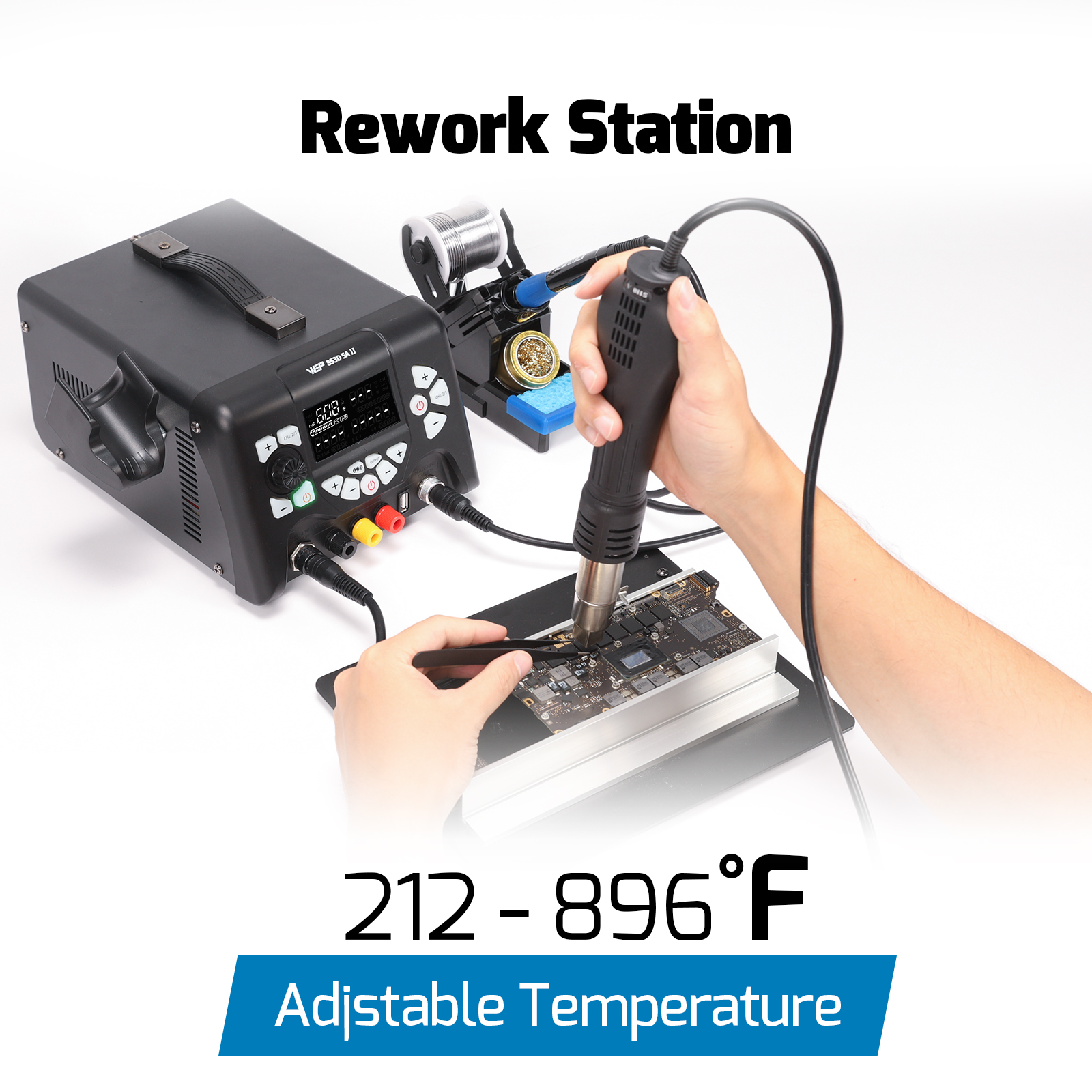

- Hot air temperature is adjustable from 212~896°F, with temperature control. Output air volume adjustable, with maximum 120L/min air output.

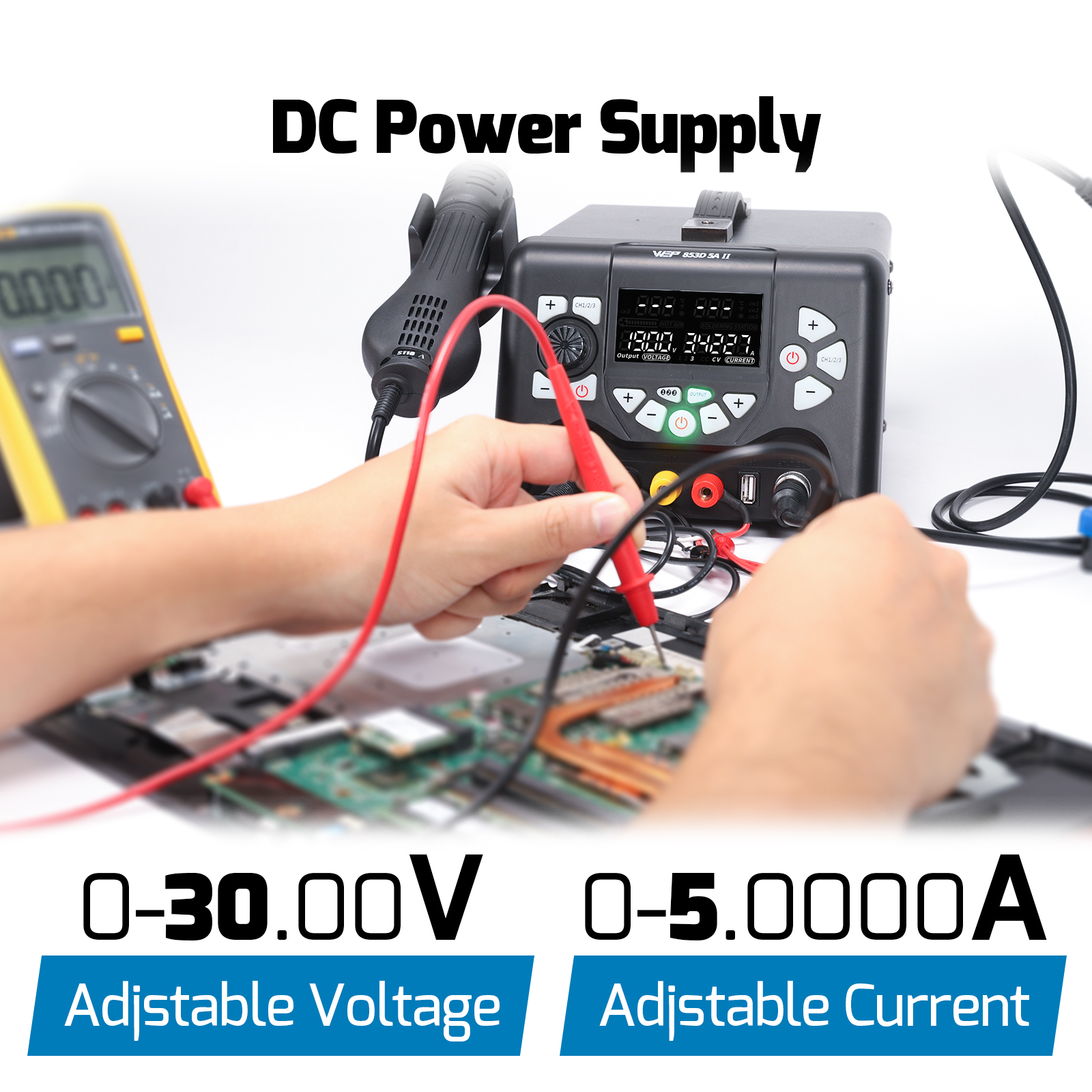

- DC power supply output voltage is adjustable from 00.00~30.00V, current is adjustable from 0.0000A~5.0000A.

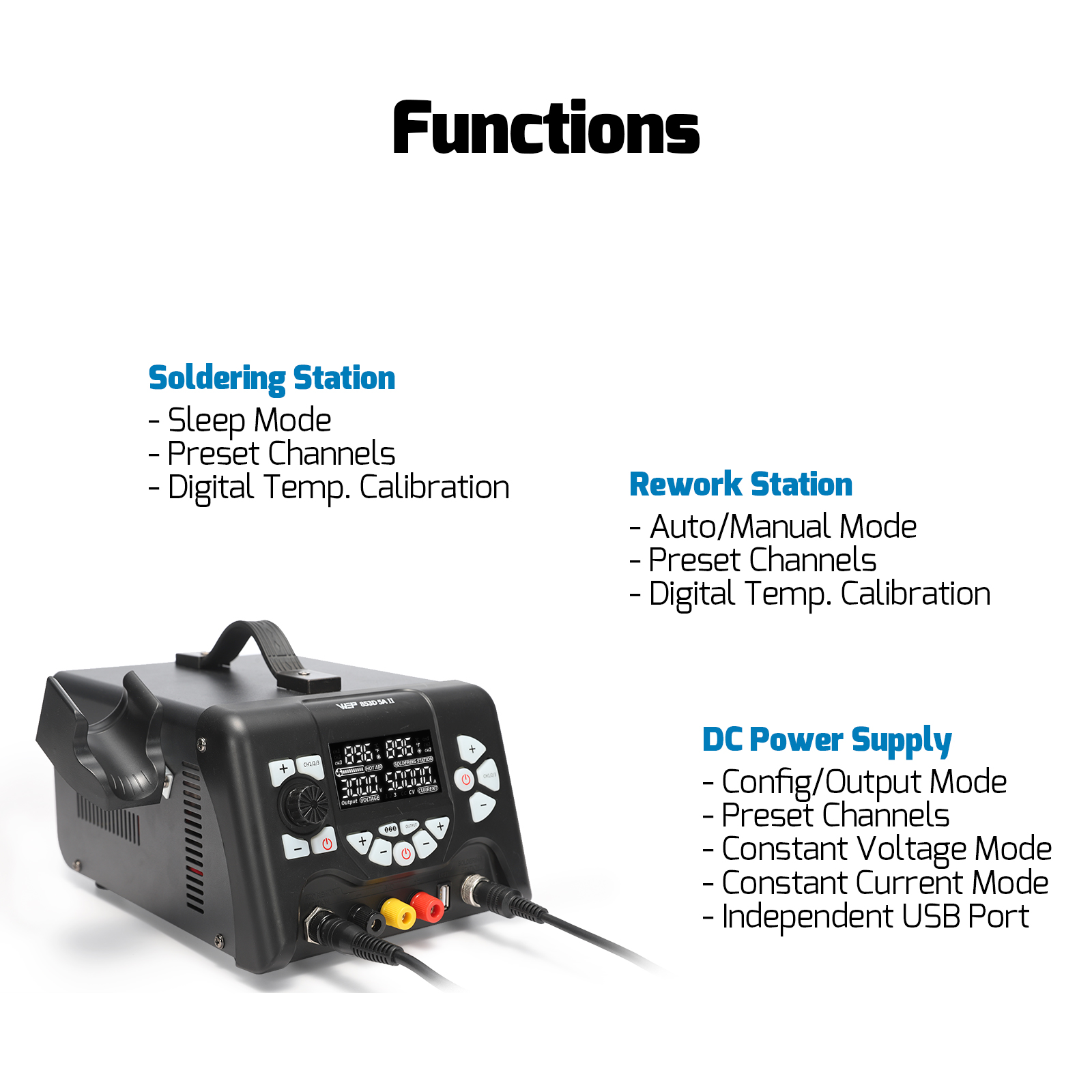

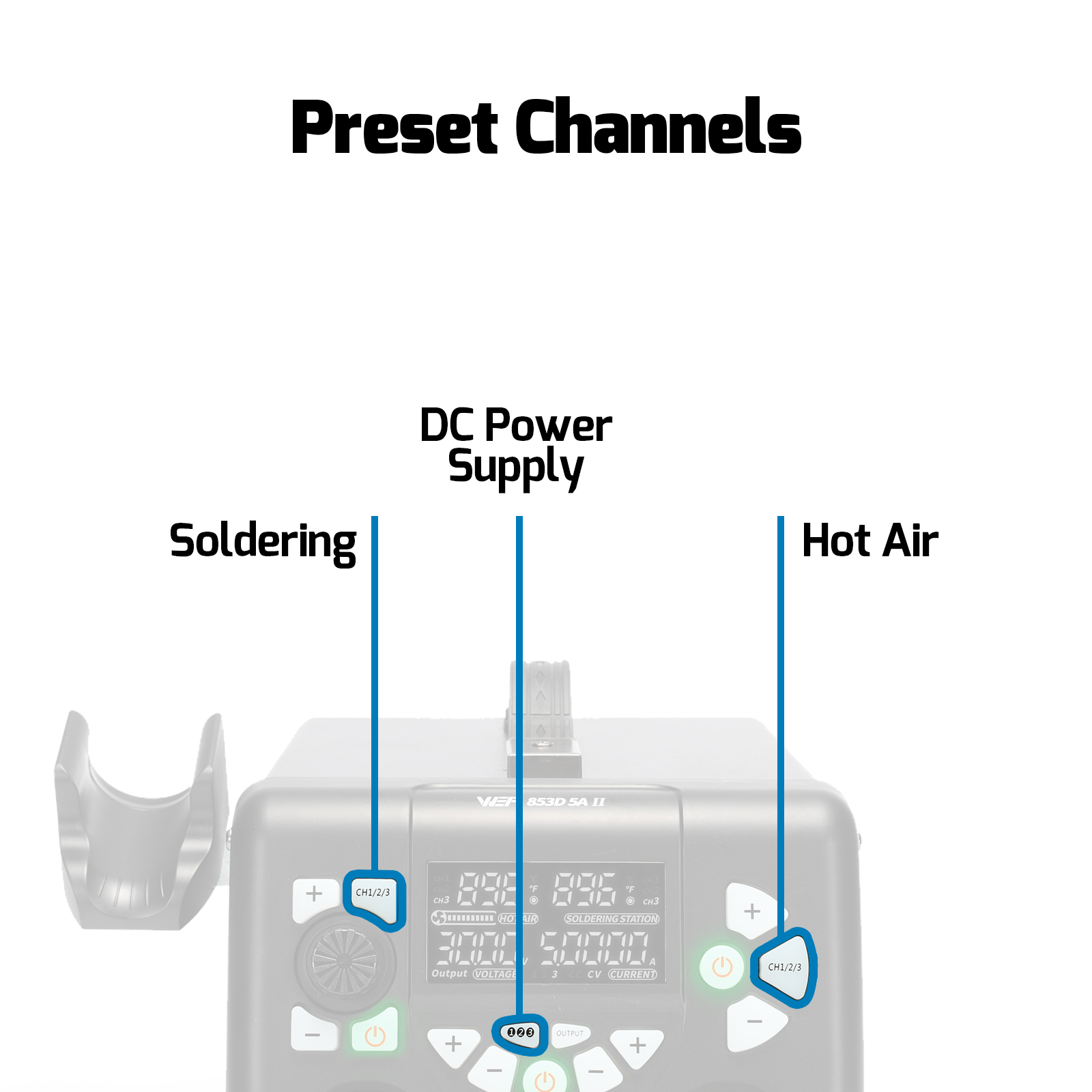

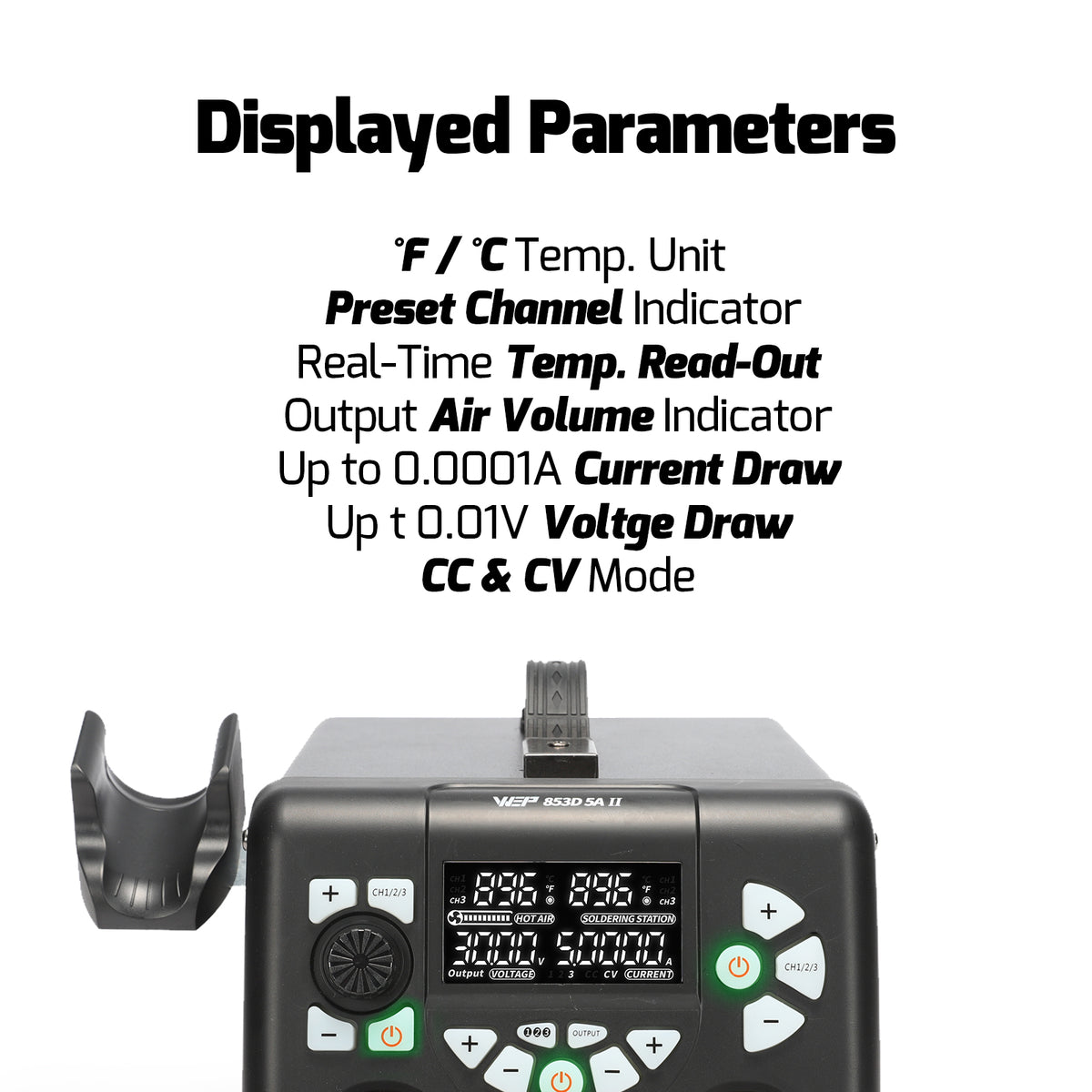

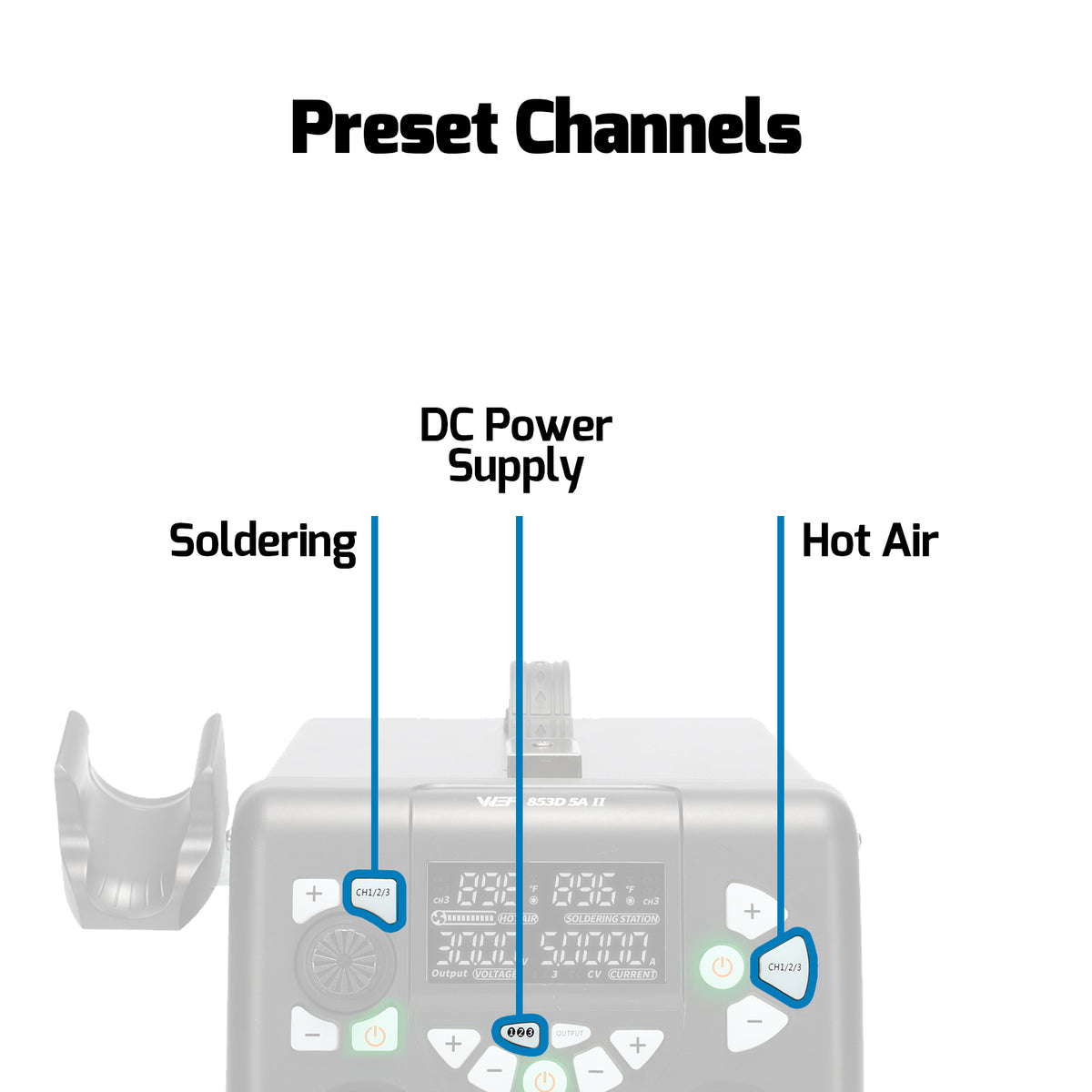

- Supported functions include preset channels, °F/°C display, sleep mode, auto/manual hot air mode, and digital temperature calibration.
| Specifications | |||
| Model | 853D 5A II | Voltage | 110V~127V |
| Rated Frequency | 60Hz | Rated Power |
970W |

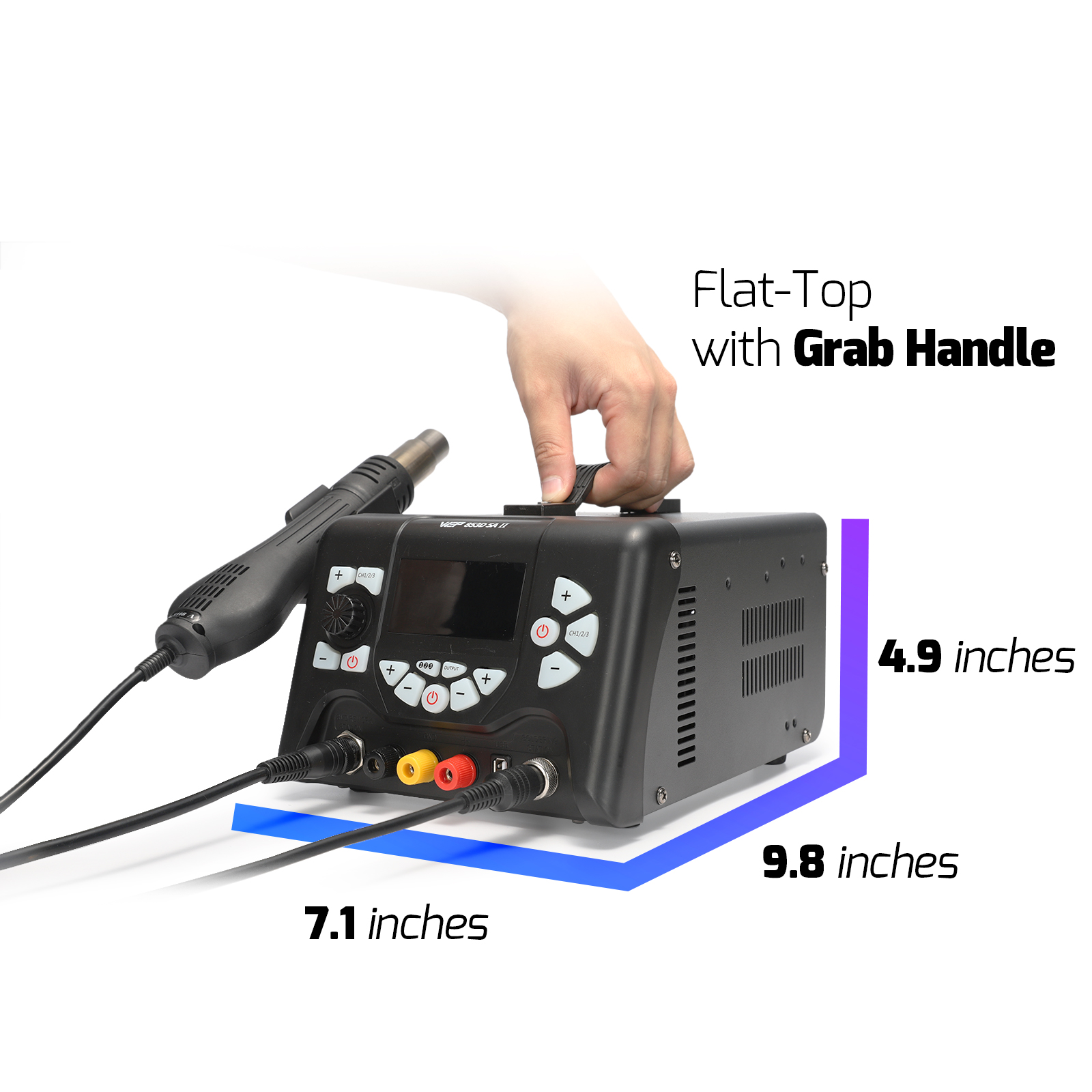

| Dimensions | L250xW190xH137 ±5mm | Display | LED |
| Hot Air Rework Station | |||
| Air Volume (Adjustable) | ≤120L/min | Hot Air Temperature Range (Adjustable) | 212°F~896°F |
| Air Delivery | Brushless motor with smooth air delivery | ||
| Soldering Station | |||
| Tip to Ground Resistance | ＜2 Ohms | Soldering Temperature Range (Adjustable) | 392°F~896°F |
| Power Supply | |||
| Output voltage | DC 0-30V±5% | Voltage setting accuracy | 0.1V |
| Output current | 0-5A (Adjustable) | Current setting accuracy | 0.01A |
| Line regulation | ＜0.067%±2mV | Voltage display accuracy | ＜0.6%± 20mV |
| Ripple & Noise | Vrms＜0.1% | Current display accuracy | ＜0.6%± 0.2mA |
| Compliance |   |
||
