8509-I Micro Hot Air Pencil

Name: 8509-I Micro Hot Air Pencil
Brand: WEP
SKU: WEPSL-85091
Price: 284.74 USD
Availability: OutOfStock

$284.74

Sold Out

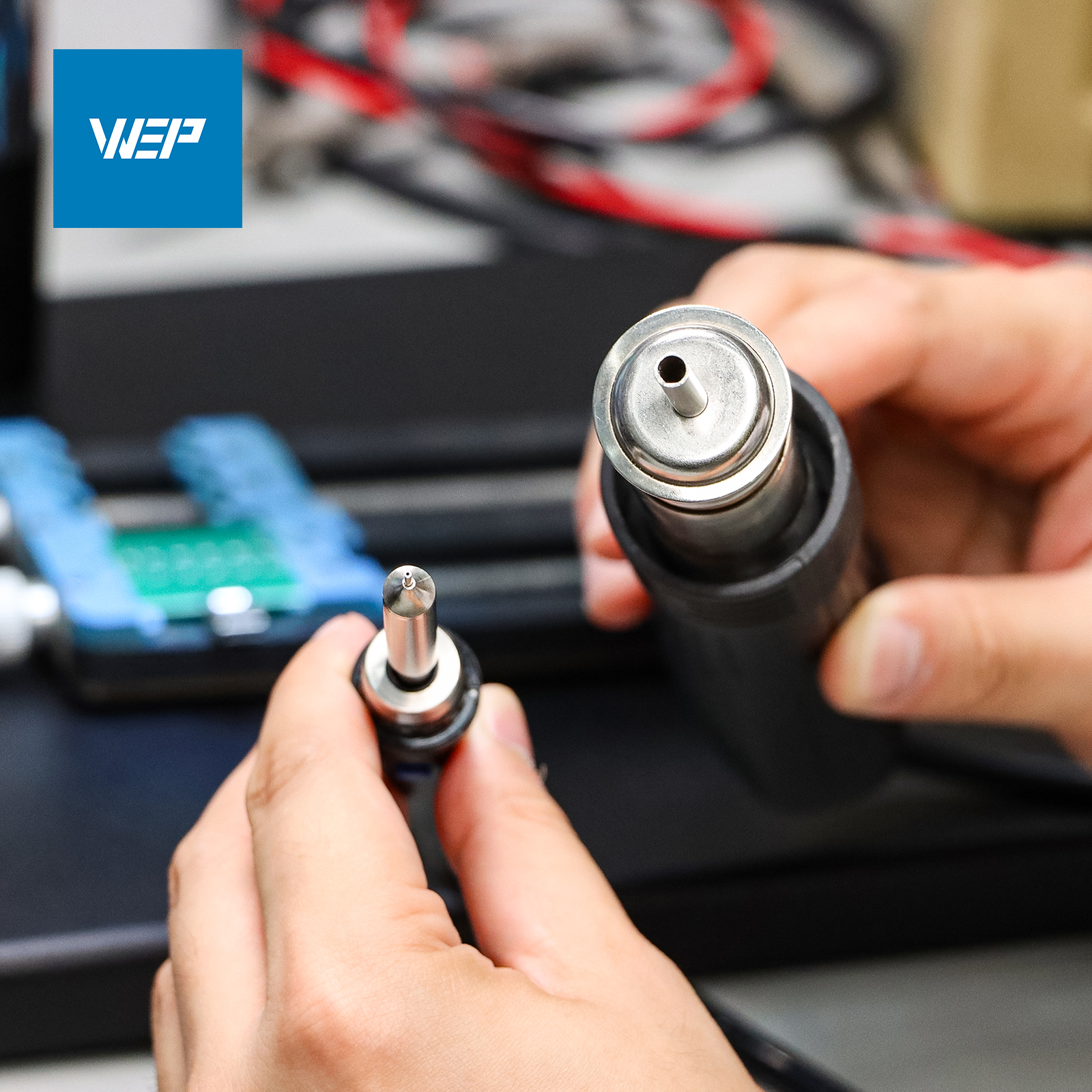

• Cartridge-style nozzles integrate heating element and nozzle for rapid, targeted hot air rework.

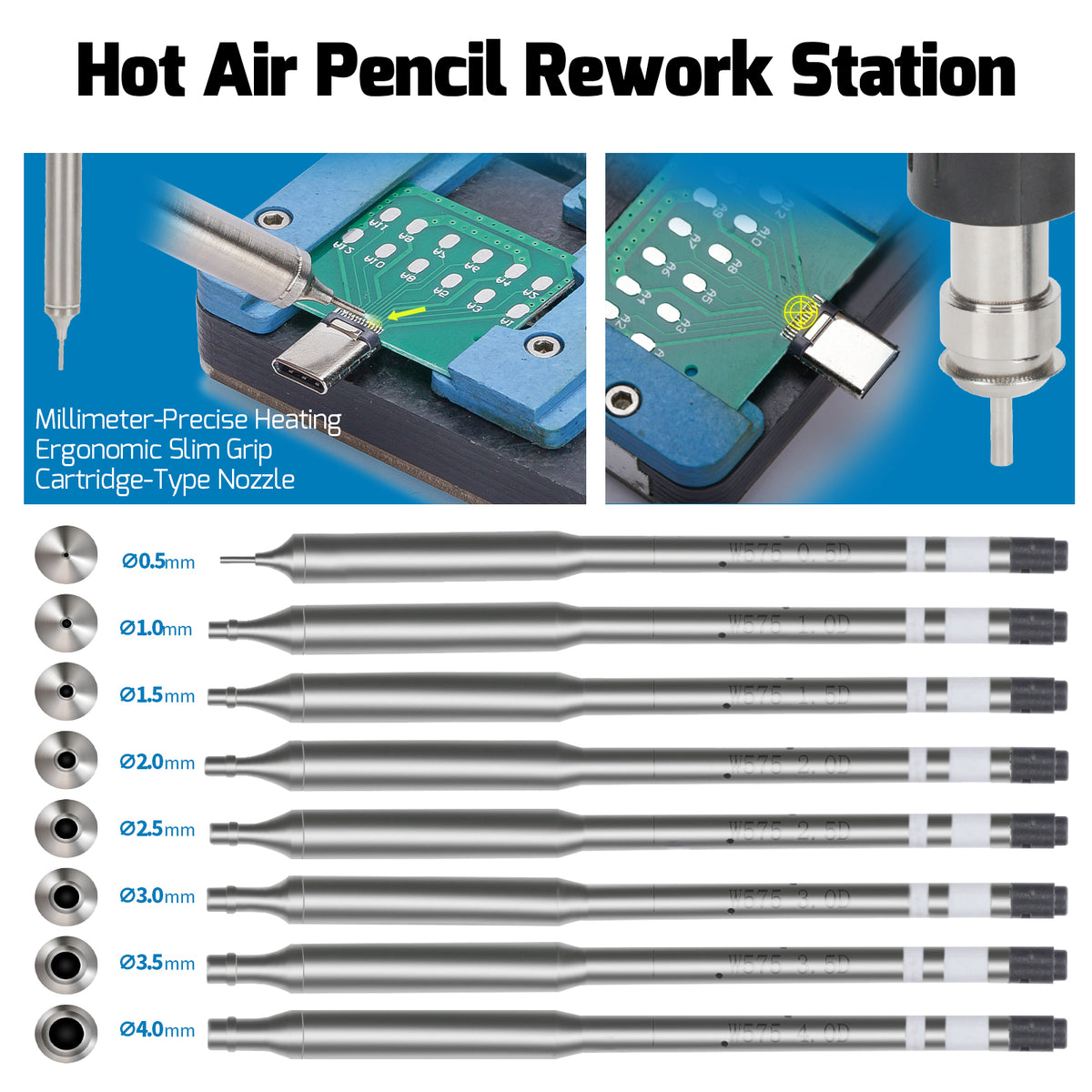

• Eight nozzle sizes, 0.5–4.0 mm — localized heating with minimal impact on nearby parts.

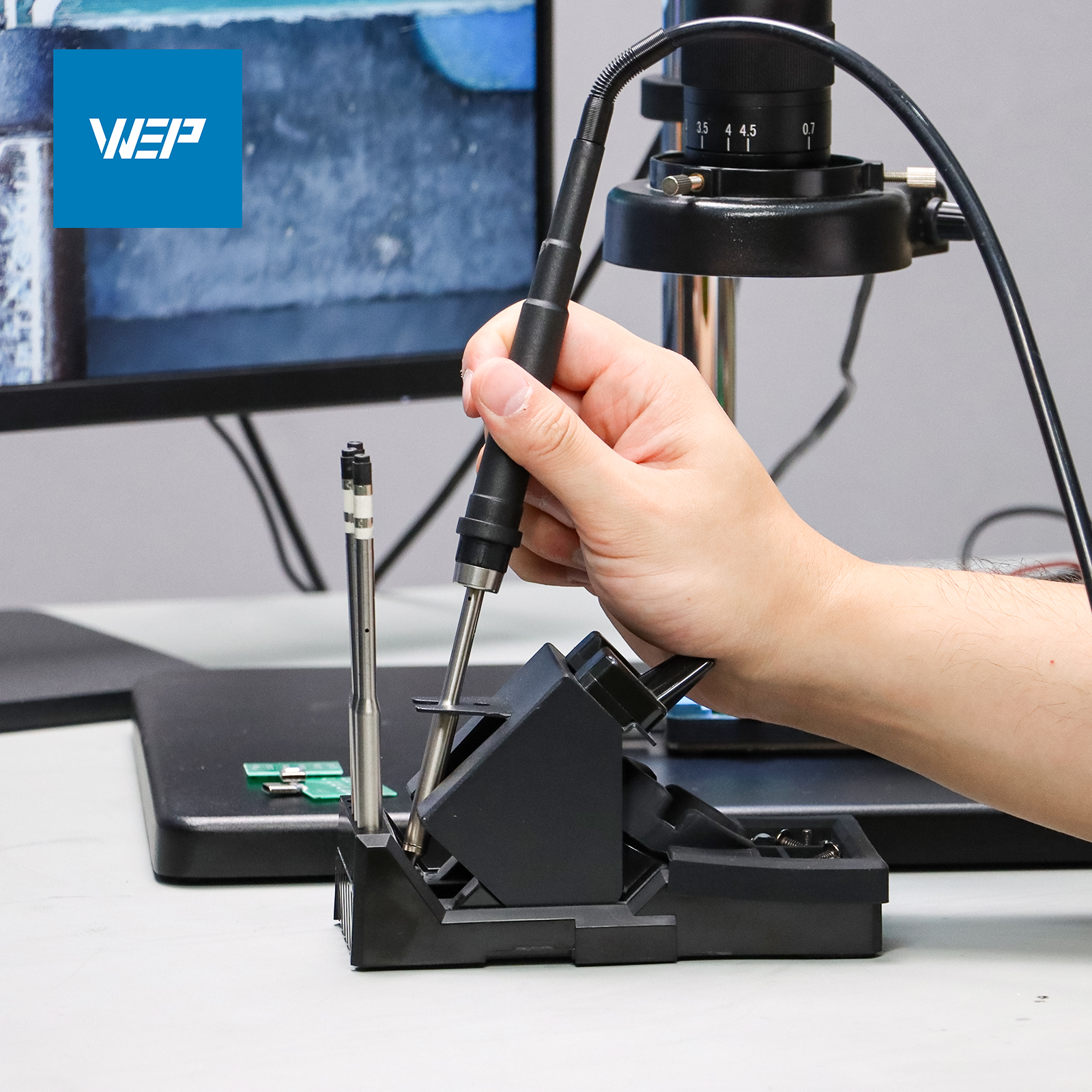

• Slim pencil reaches micro components and confined areas around ports and dense boards.

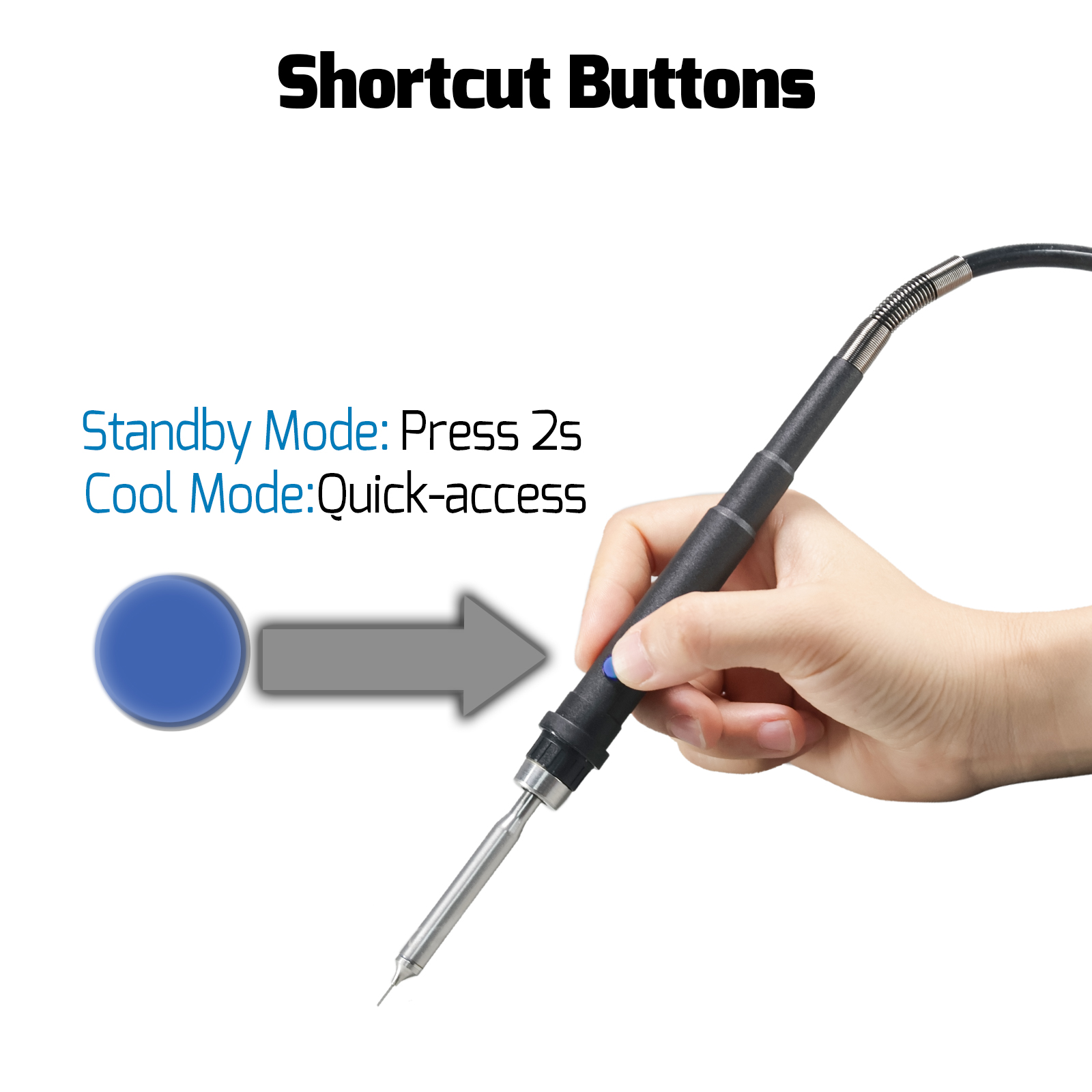

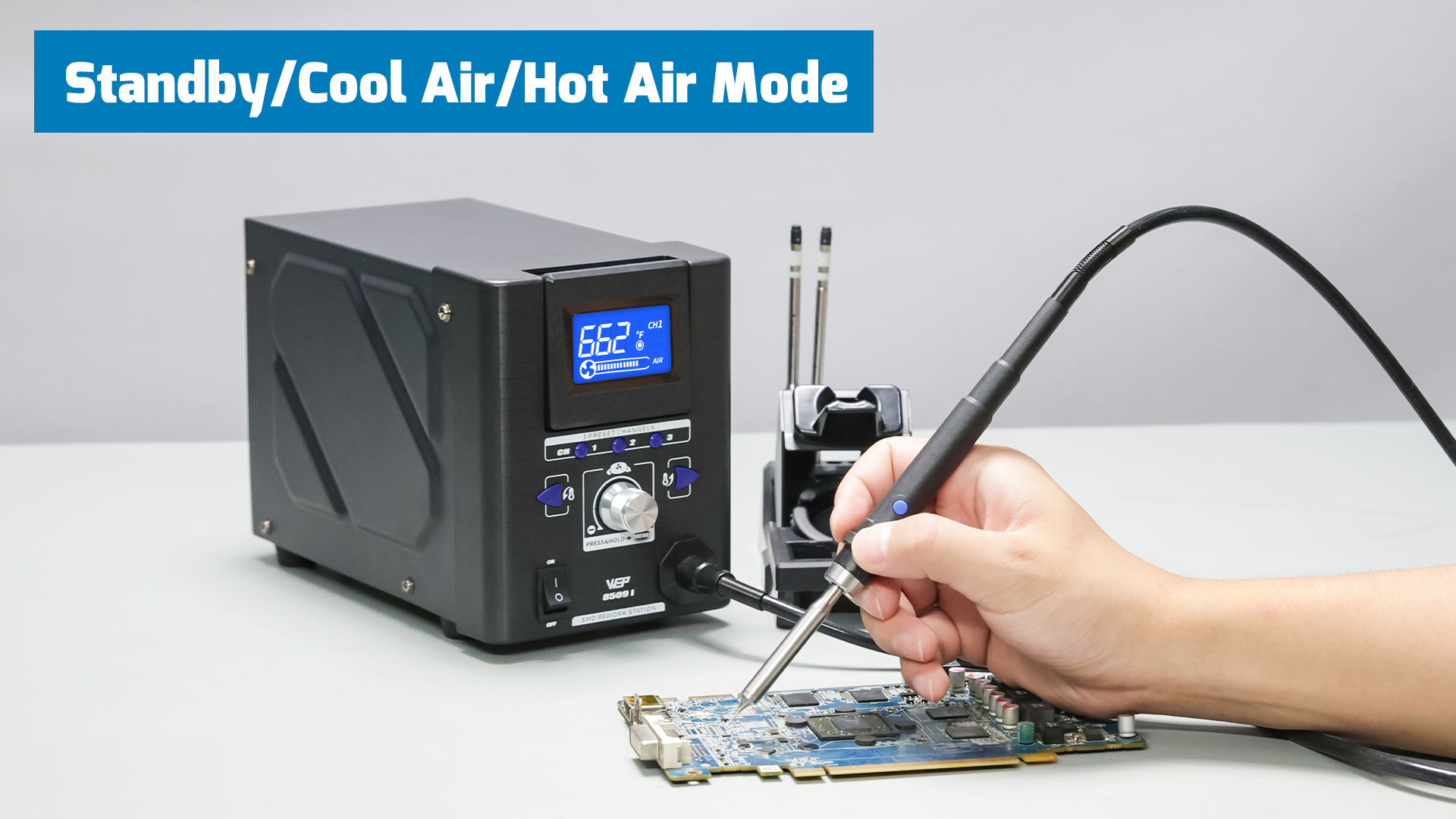

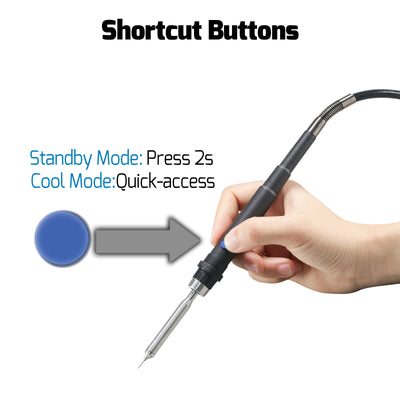

• Handpiece shortcut buttons for cool-air and standby without returning to the panel.

Product variants

In stock

Popular Upgrades & Peripherals

In stock! Ships within 1-2 business days.

Directly from the Manufacturer

1-Year Warranty

Free shipping (Order above US$50.00)

Specifications

Specifications

Model 8509-I
Voltage 110V~240V~
Rated Frequency 50~60Hz
Rated Power 170W

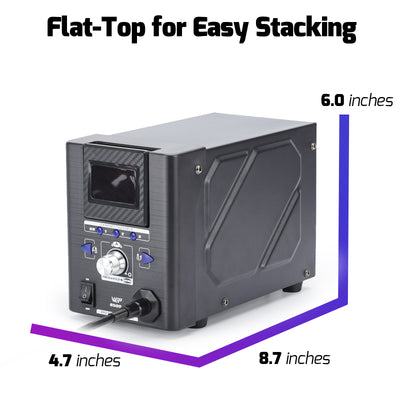

Dimensions L222xW120xH152 ±5mm
Air Delivery Pump motor with smooth air delivery

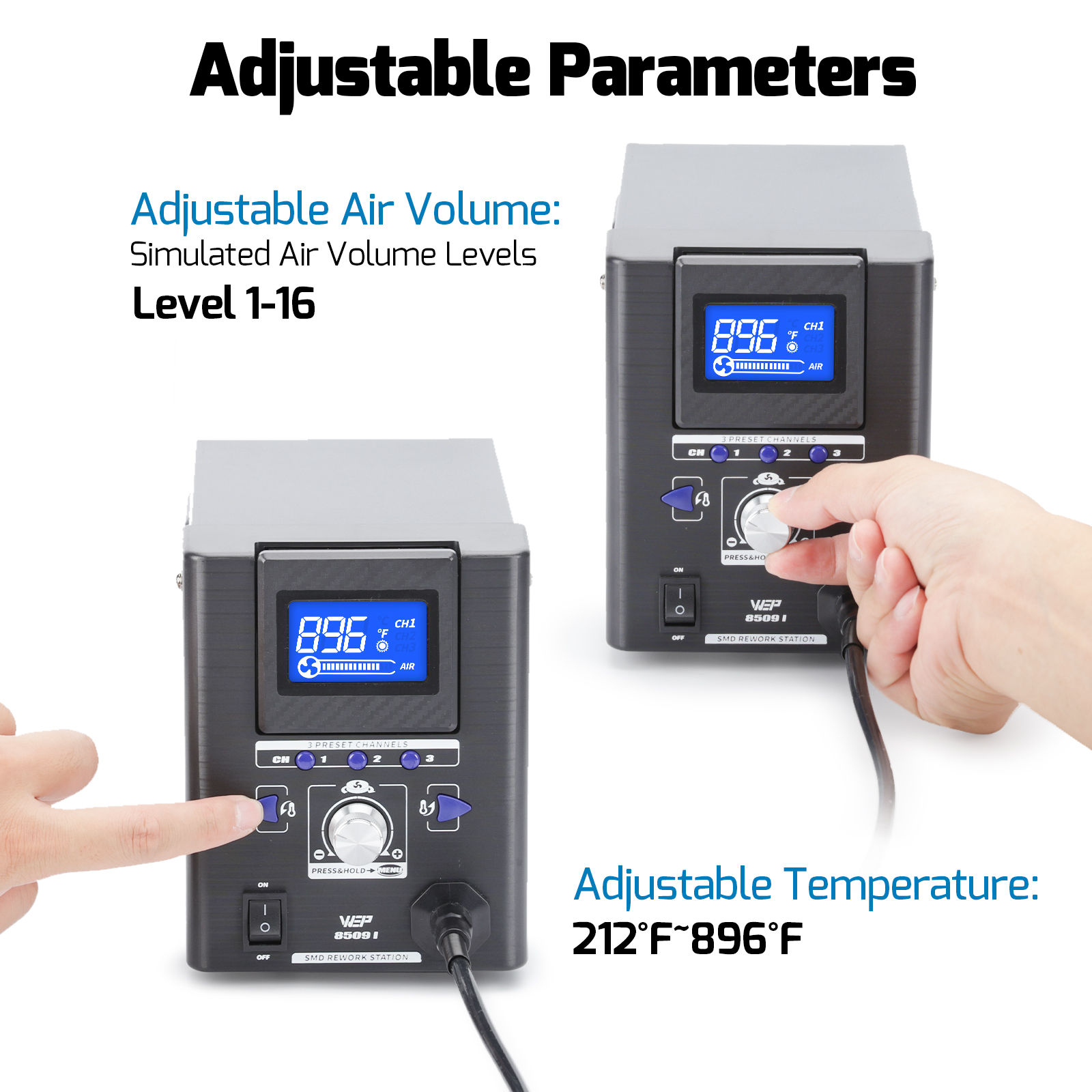

Air Speed (Adjustable) ≤4.5m/s (with a nozzle diameter of Φ2mm)
Temperature Range (Adjustable) 212°F~896°F

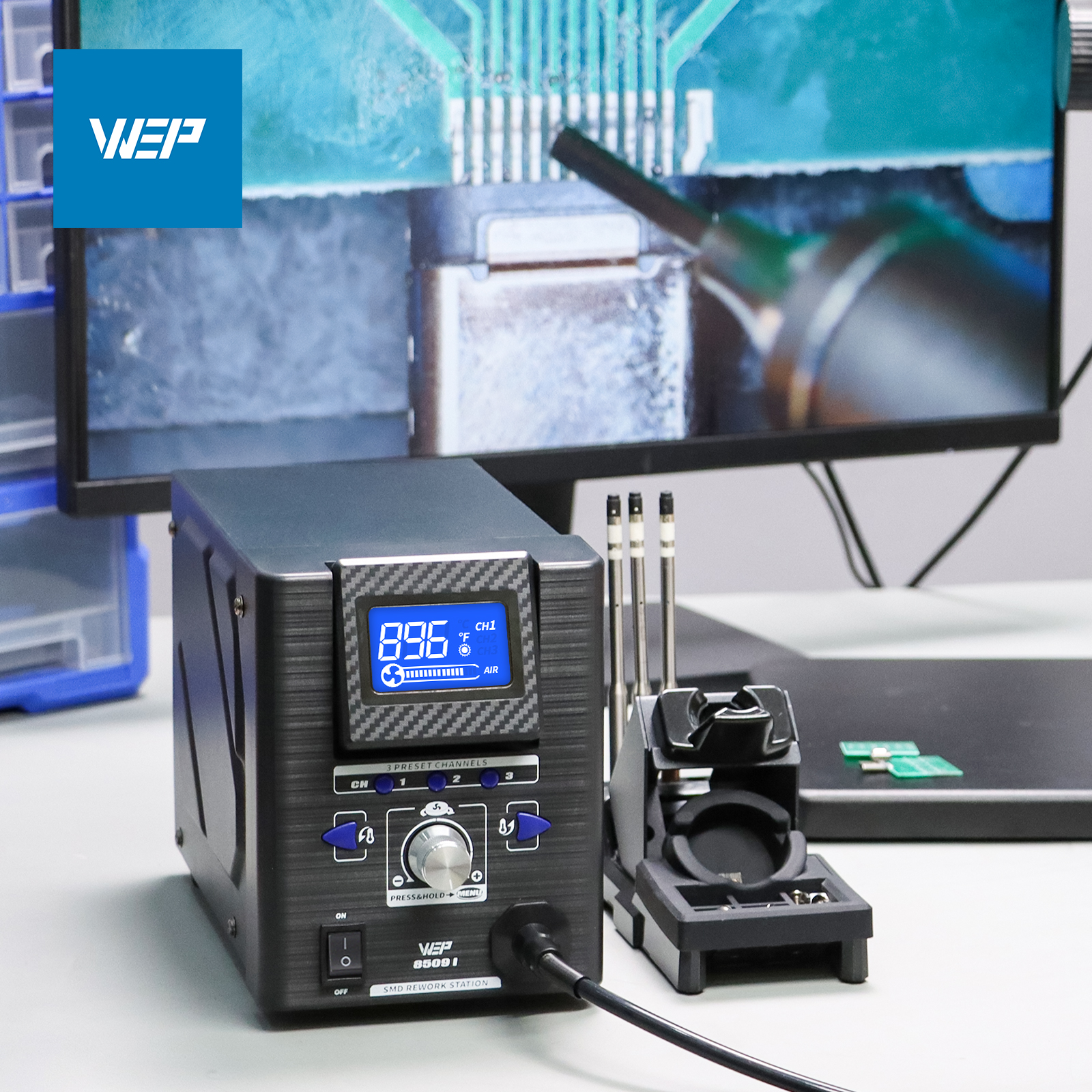

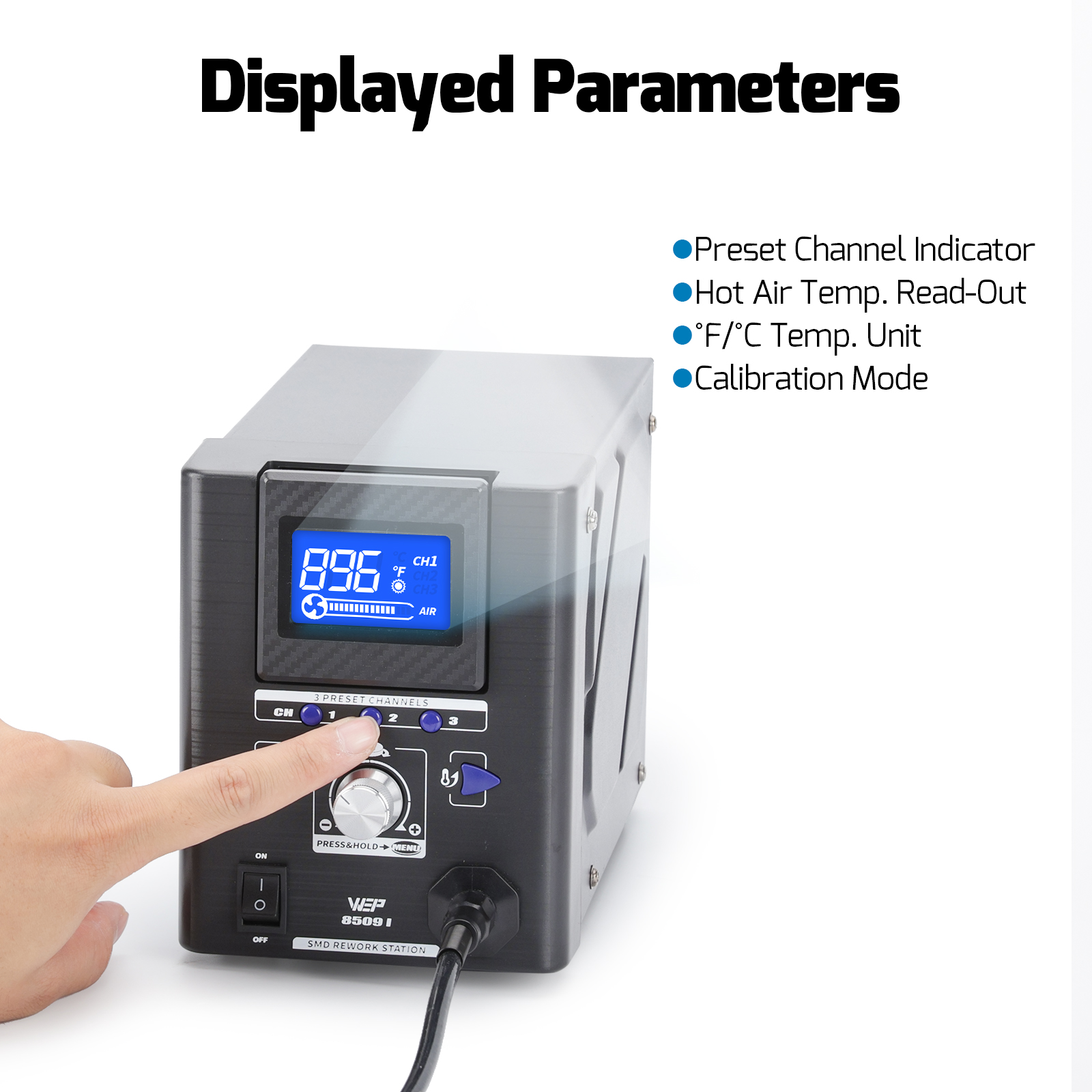

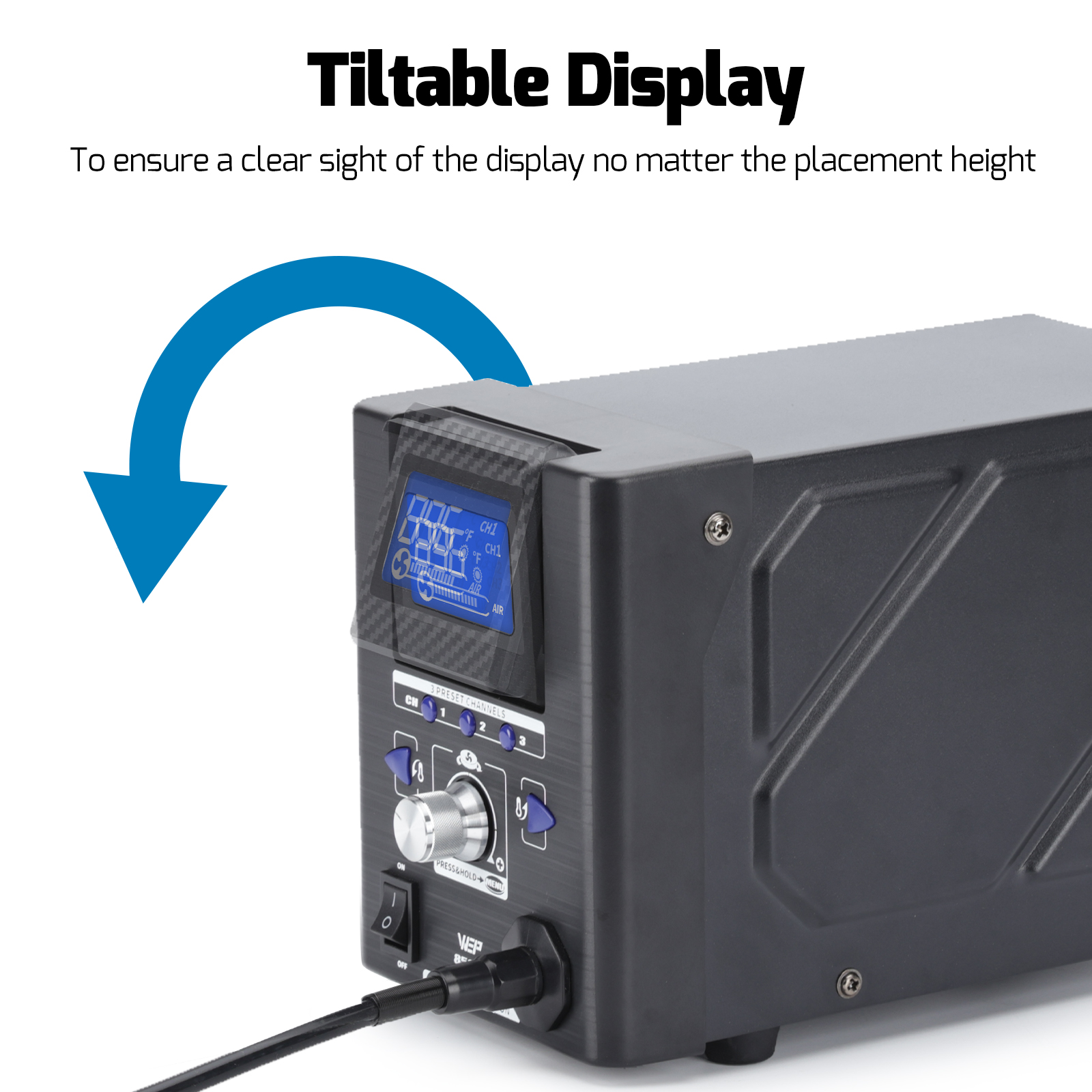

Display LCD

In the Box

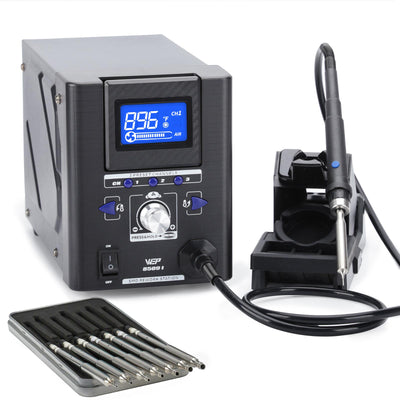

1x WEP 8509-I Precision Hot Air Rework Station

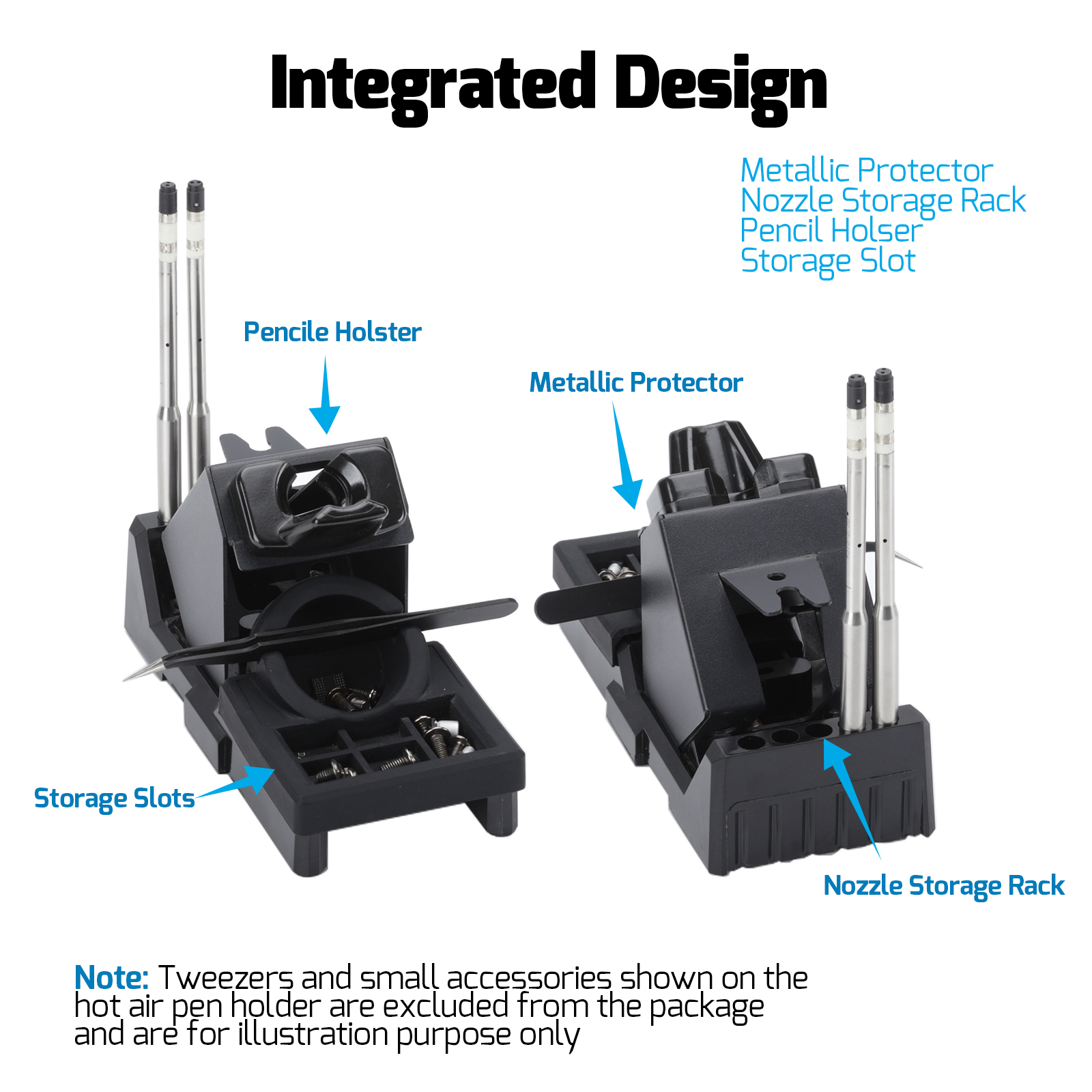

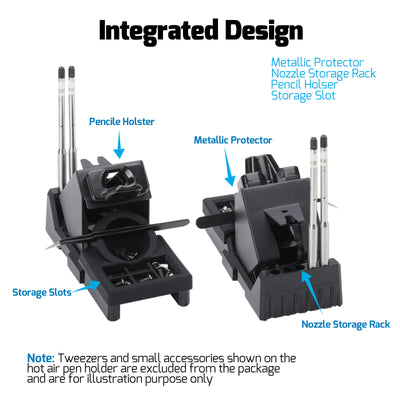

1 x Hot Air Pencil Holder

8 x W575 Hot Air Nozzles (0.5/1.0/1.5/2.0/2.5/3.0/3.5/4.0mm)

1 x ETL-Compliant Power Cord

In the Box

1 x WEP 8509-I Precision Hot Air Rework Station

1 x Hot Air Pencil Holder

8 x W575 Hot Air Nozzles (0.5/1.0/1.5/2.0/2.5/3.0/3.5/4.0mm)

1 x ETL-Compliant Power Cord

FAQs

Please read our FAQs page to find out more.

What is the difference between a hot air pencil and a 1000W hot air gun?

A hot air pencil focuses heat on a very small area for micro rework. A 1000W hot air gun provides stronger airflow and broader heat transfer for larger components, heavier boards, and BGA-related
work.

Can a hot air pencil replace a standard hot air station?

Not always. A micro hot air pencil is better for small, localized work. A standard or high-power hot air station is better for larger components, shields, BGA-related work, and boards that need stronger heat transfer.

Is this useful for smartphone motherboard repair?

Yes. Smartphone motherboards often have dense layouts and small components packed close together, making localized hot air control especially useful.

Can hot air pencil help prevent damage to nearby components?

It can help reduce unnecessary heat exposure to nearby components by focusing hot air through smaller nozzles. Proper temperature, airflow, nozzle size, and technique are still important.

Is a hot air pencil suitable for Type-C port repair?

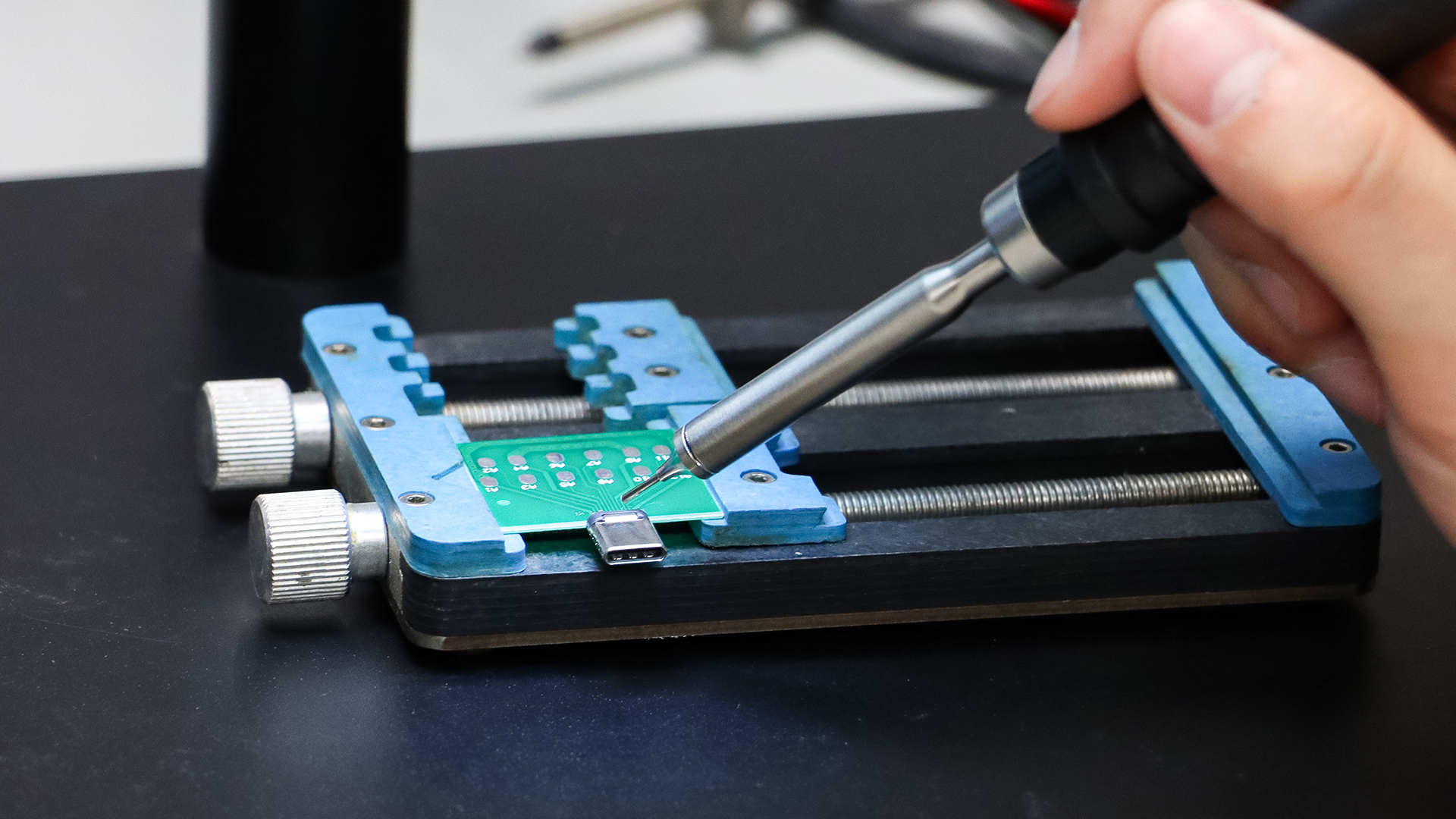

Yes. A hot air pencil is useful for localized heating around Type-C ports and other compact board areas where users want to reduce heat exposure to nearby components.

When would I need a micro hot air pencil instead of a normal hot air gun?

You may need a micro hot air pencil when a standard hot air gun heats too large an area, moves nearby small components, or makes it difficult to control heat around the repair point.
