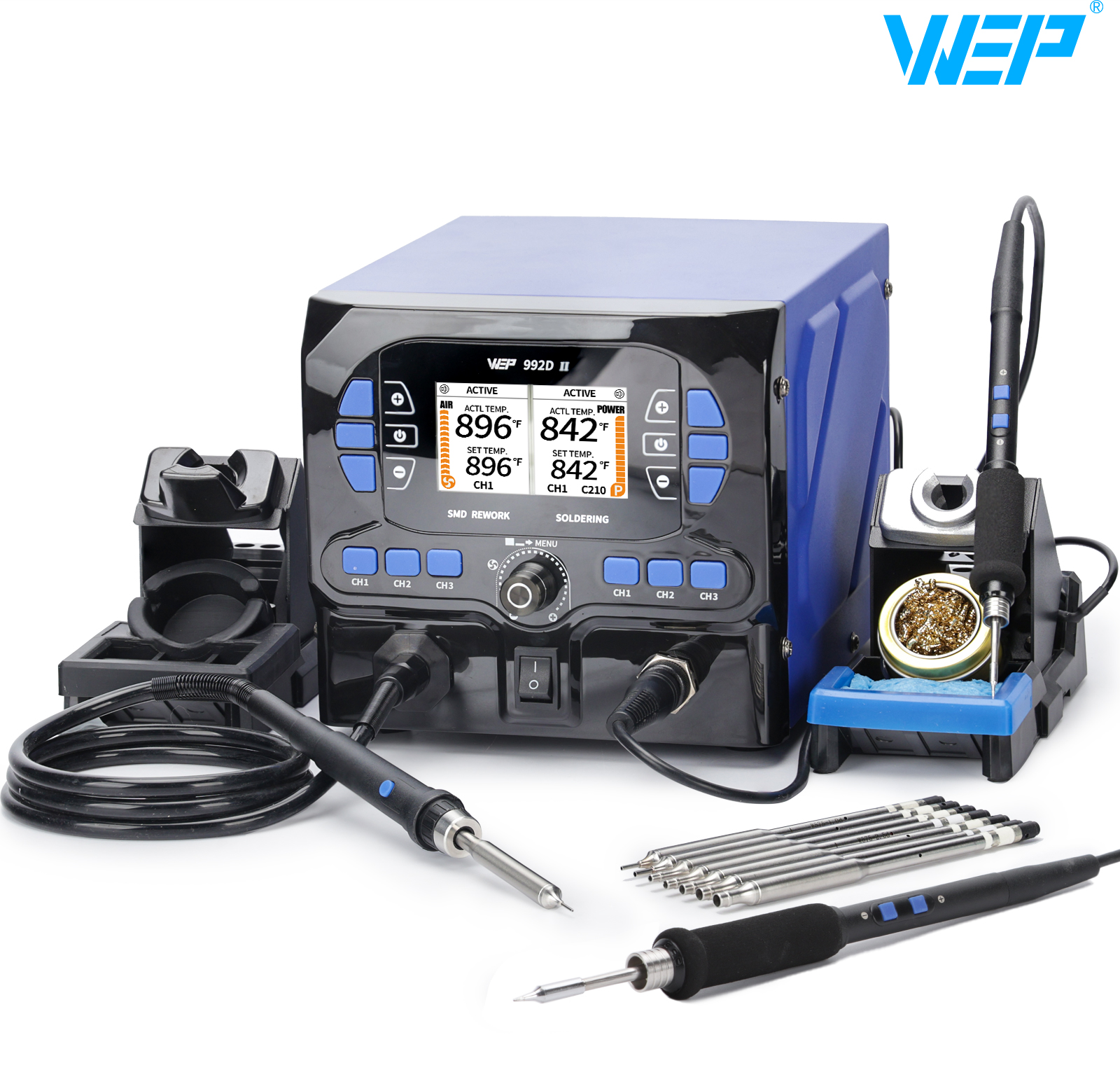

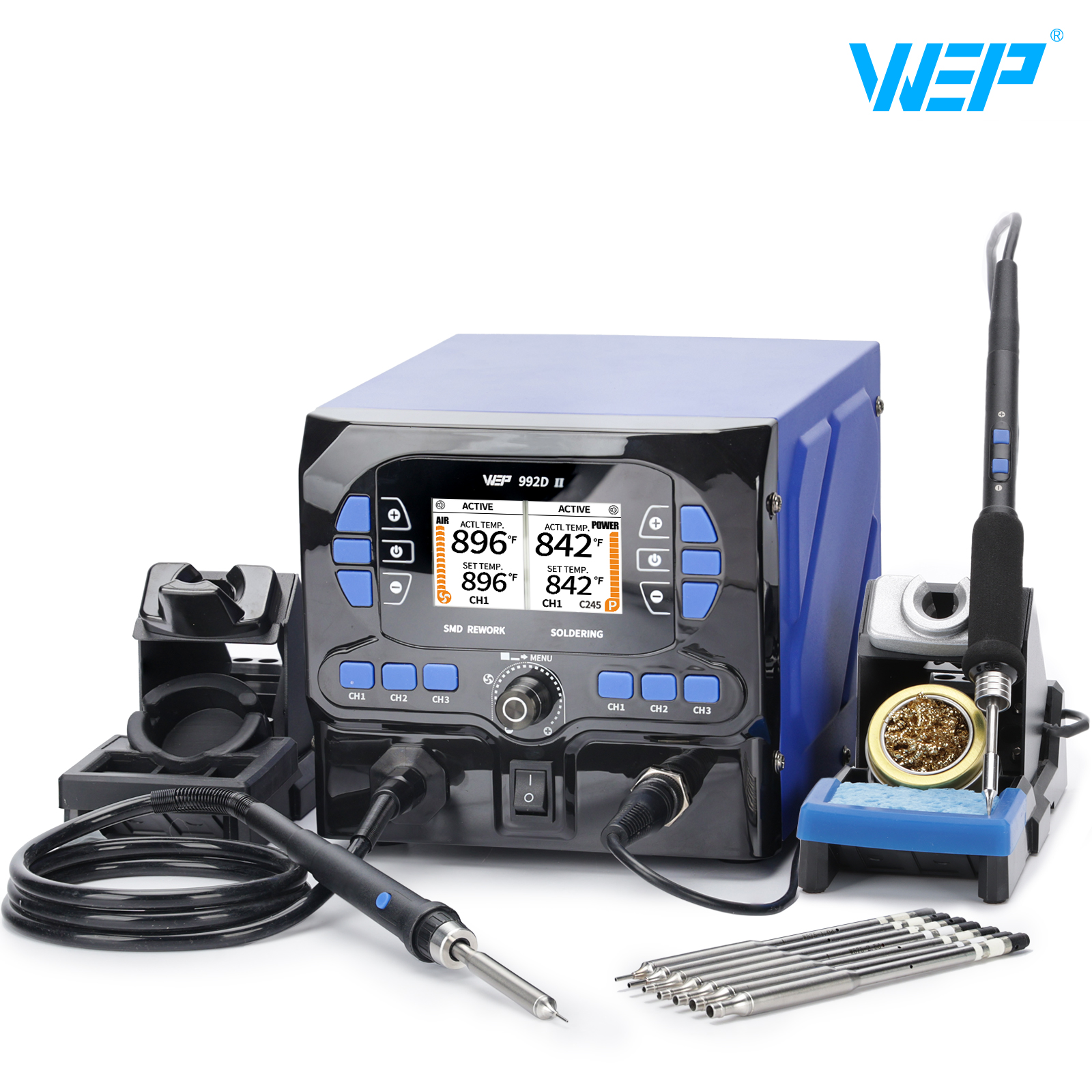

992D II 2-IN-1 Precision Rework Station

Name: 992D II 2-IN-1 Precision Rework Station
SKU: WEPSL-992D2-210
Price: 413.24 USD
Availability: InStock
Rating: 0 (0 reviews)

$413.24 USD $434.99 USD Save $21.75 USD

Free Shipping Over $50

1-Year Manufacturer Warranty

30-Day Return

Direct from the Manufacturer

Style

with C210 Tips

with C245 Tips

with C210,C245 Tips

Quantity

Inventory quantity : 6

Description

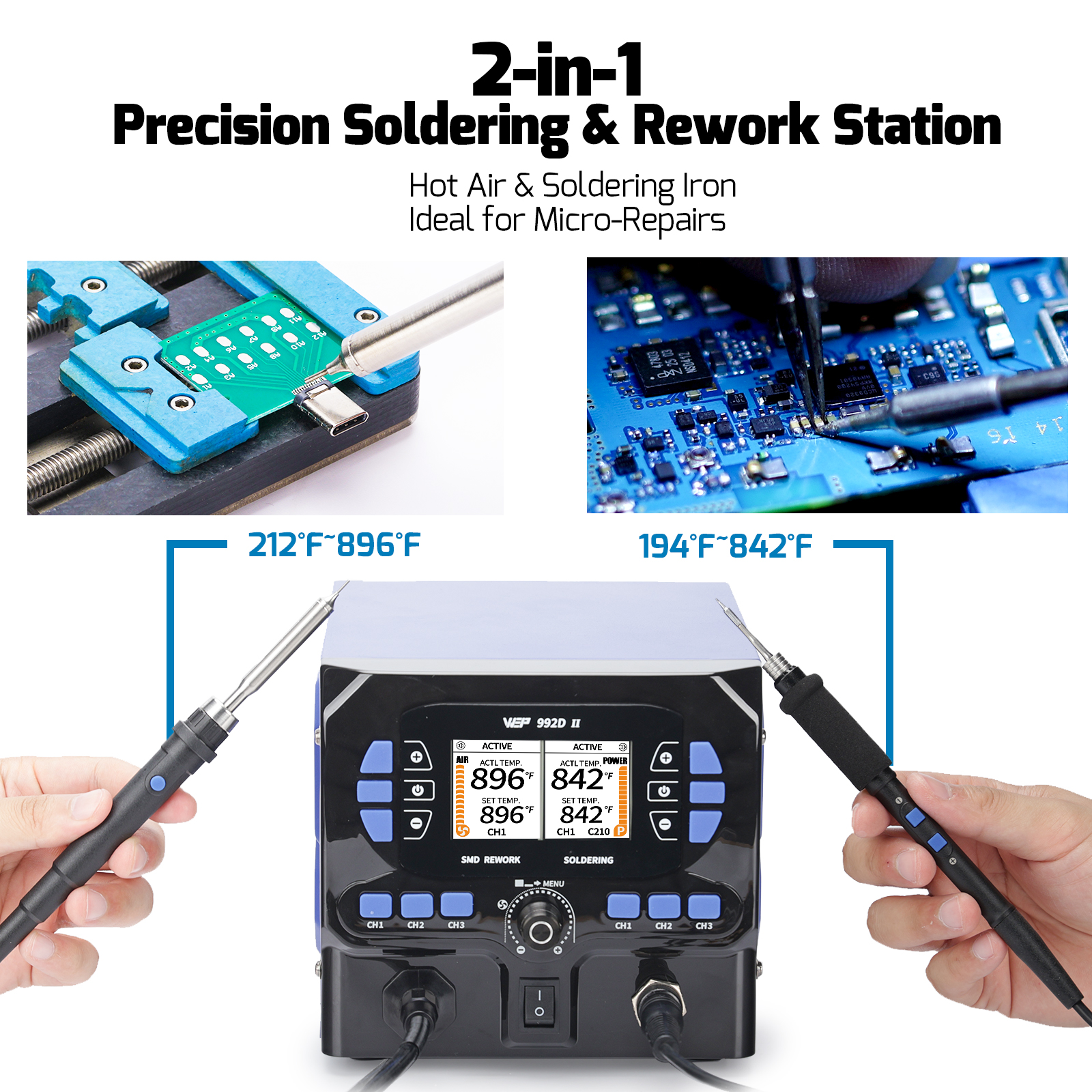

The 2 IN 1 soldering station integrates a high-precision hot air pencil and soldering iron, simplifying intricate rework and desoldering processes by eliminating tool swaps.
Rework Station: Hot air pencil's millimeter-precise heating, slim grip & replaceable nozzle ensure targeted repairs with minimal impact on unwanted areas.

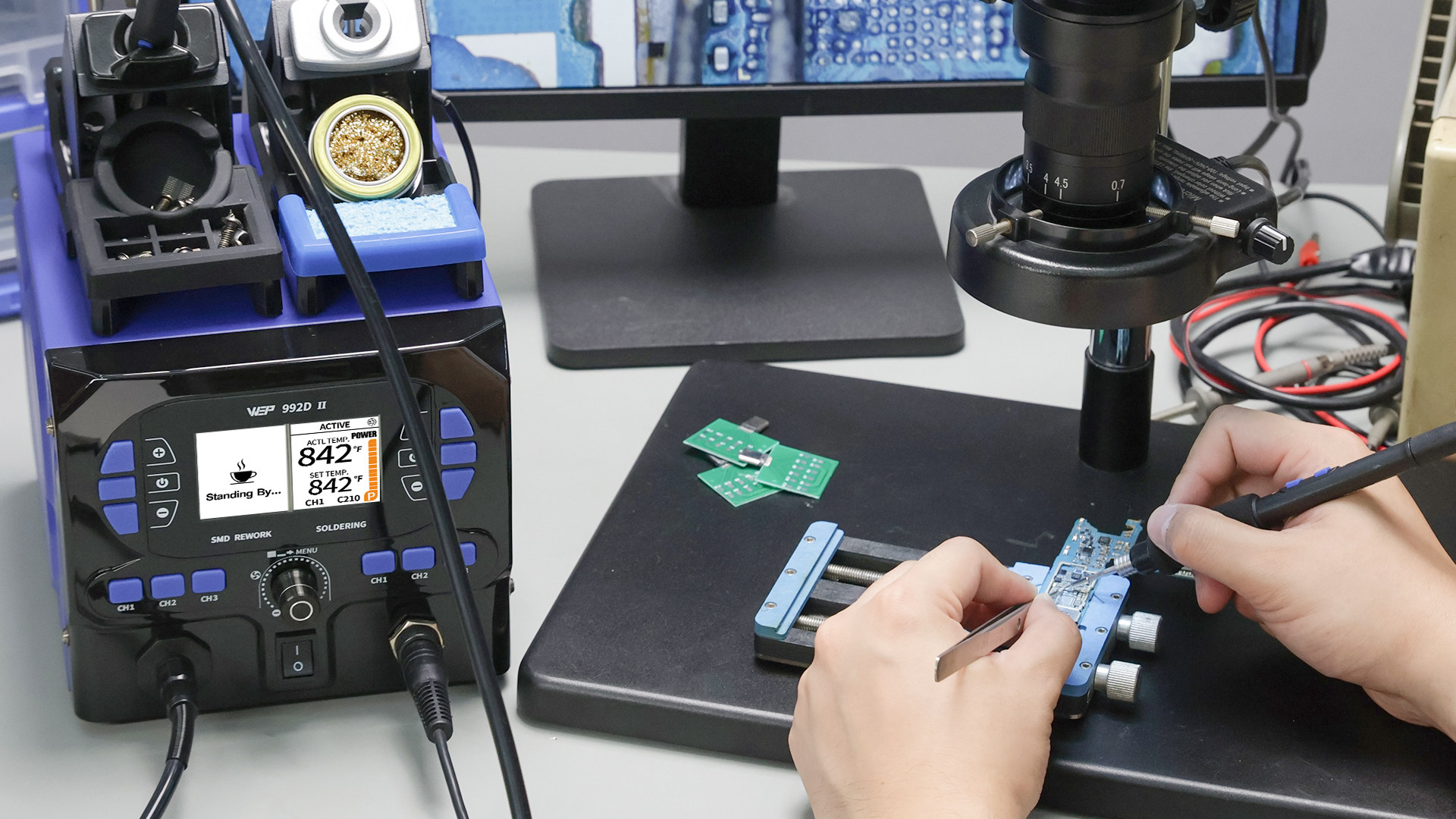

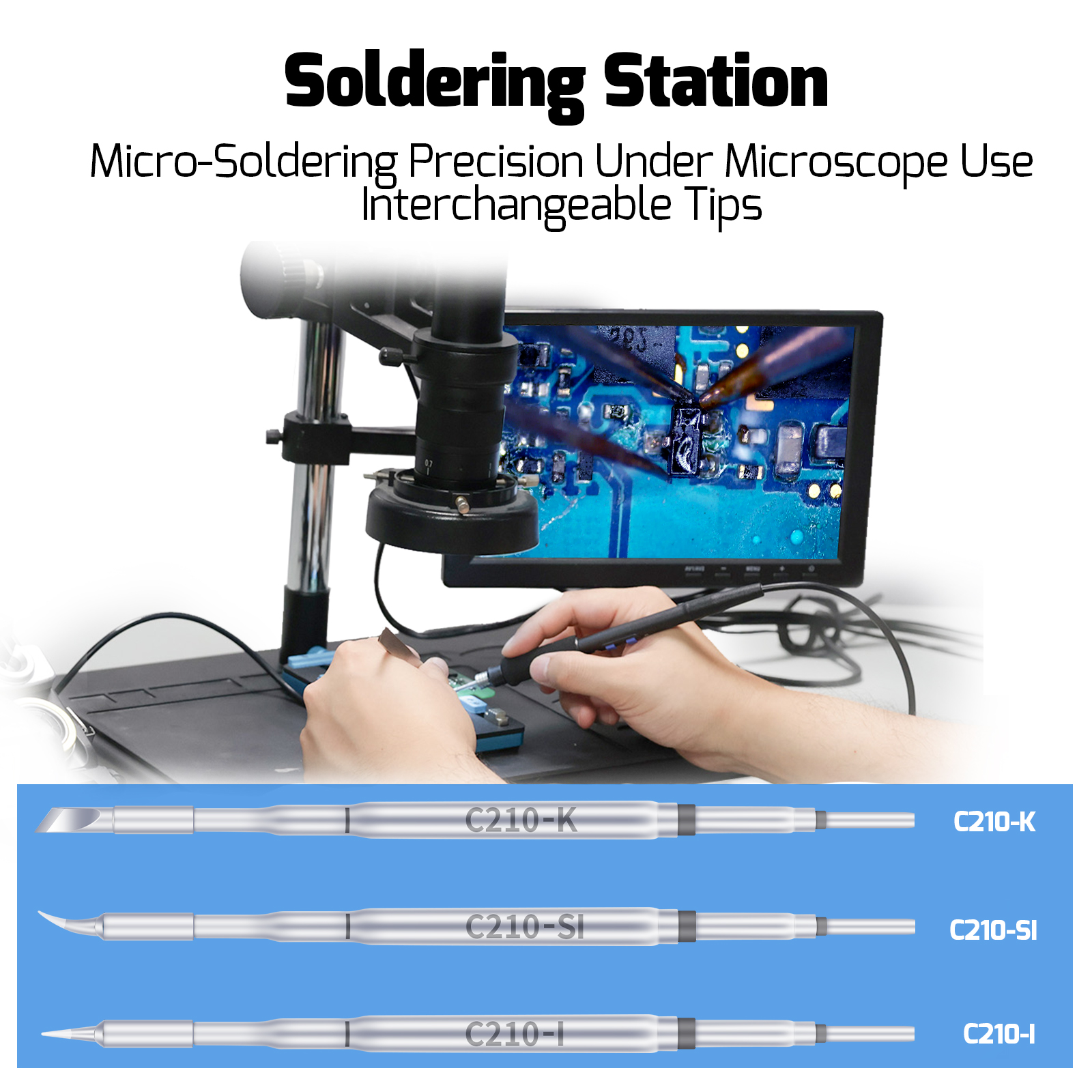

Soldering Station: Suitable for micro-components enhances visibility for precise soldering under a microscope.
Accessory Contents: 8 x hot air nozzle cartridges(Diameter 0.5/1.0/1.5/2.0/2.5/3.0/3.5/4.0mm); 3 x tip cartridges(C210-SI/K/I)
3-Memory Channels: Preset & switch between 3 customizable temperature/air volume combos with ease. One-touch access for seamless workflow optimization. (3 channels each for hot air and soldering, air volume memory only available for hot air)
Standby & Sleep Mode: Hot air pencil auto-stops heating & cools to 212°F when placed in holder, preserving heating element. Soldering station initiates low-wear sleep upon handpiece return, cooling to 392°F for reduced wear on tip & heating element.
Individual Displays: Features dual full-color displays with configurable functions such as standby timer, temp unit. Perfectly suited for dual-user collaboration or standalone operation.

Specifications
Model	992D II	Voltage	110V~127V
Rated Frequency	50Hz	Rated Power	290W (with C245 Handpiece) 210W (with C210 Handpiece)
Dimensions	L233xW170xH156 ±5mm	Display	LCD
Tip to Ground Resistance	＜2 Ohms	Air Delivery	Pump Motor with smooth air delivery
Air Volume (Adjustable)	≤10L/min	Hot Air Temperature Range (Adjustable)	212°F~896°F
*Soldering Temperature Range (Adjustable)*	194°F~842°F	Compliance
*In the Box*	Default 1 x WEP 992D II Main Unit (Hot Air Pencil Built-in) 8 x W575-D Cartridge Nozzles (⌀0.5/1.0/1.5/2.0/2.5/3.0/3.5/4.0mm) 1 x Hot Air Pencil Holder (with Protector) 1 x Soldering Iron Holder (with Tip Cleaner, Sponge) 5 x Washer (Hot Air Pencil) 1 x ESD-Safe Grounding Cord 1 x ETL-Compliant Power Cord
*Variant 1: C210 Tips Package*	1 x Soldering Iron Handpiece(C210) 3 x C210 Soldering Tips (I/SI/K)
*Variant 2: C245 Tips Package*	1 x Soldering Iron Handpiece(C245) 3 x C245 Soldering Tips (I/SI/K)
*Variant 3: C210+C245 Tips Package*	2 x Soldering Iron Handpiece(C210, C245) 3 x C210 Soldering Tips (I/SI/K) 3 x C245 Soldering Tips (I/SI/K)

Who is WEP?

We started making soldering tools in the 2000, we started from manufacturing the very basic soldering iron (soldering coppers) that fixes radio, telecommunication devices, to precision soldering irons for electronics with much smaller components such as smartphones, smartwatches, gaming consoles, routers.

Our tools include soldering stations (from general soldering to micro soldering), hot air rework stations (from standard SMD rework to BGA rework), desoldering stations, bench power supply, and multi-stations (where multiple stations are integrated in one).

View All Products

WEP 992D II

The precision hot air pencil & C210 soldering iron duo, offering millimeter-level heat control for targeted, high-accuracy heating tasks in repair, rework, and heat treatment applications.

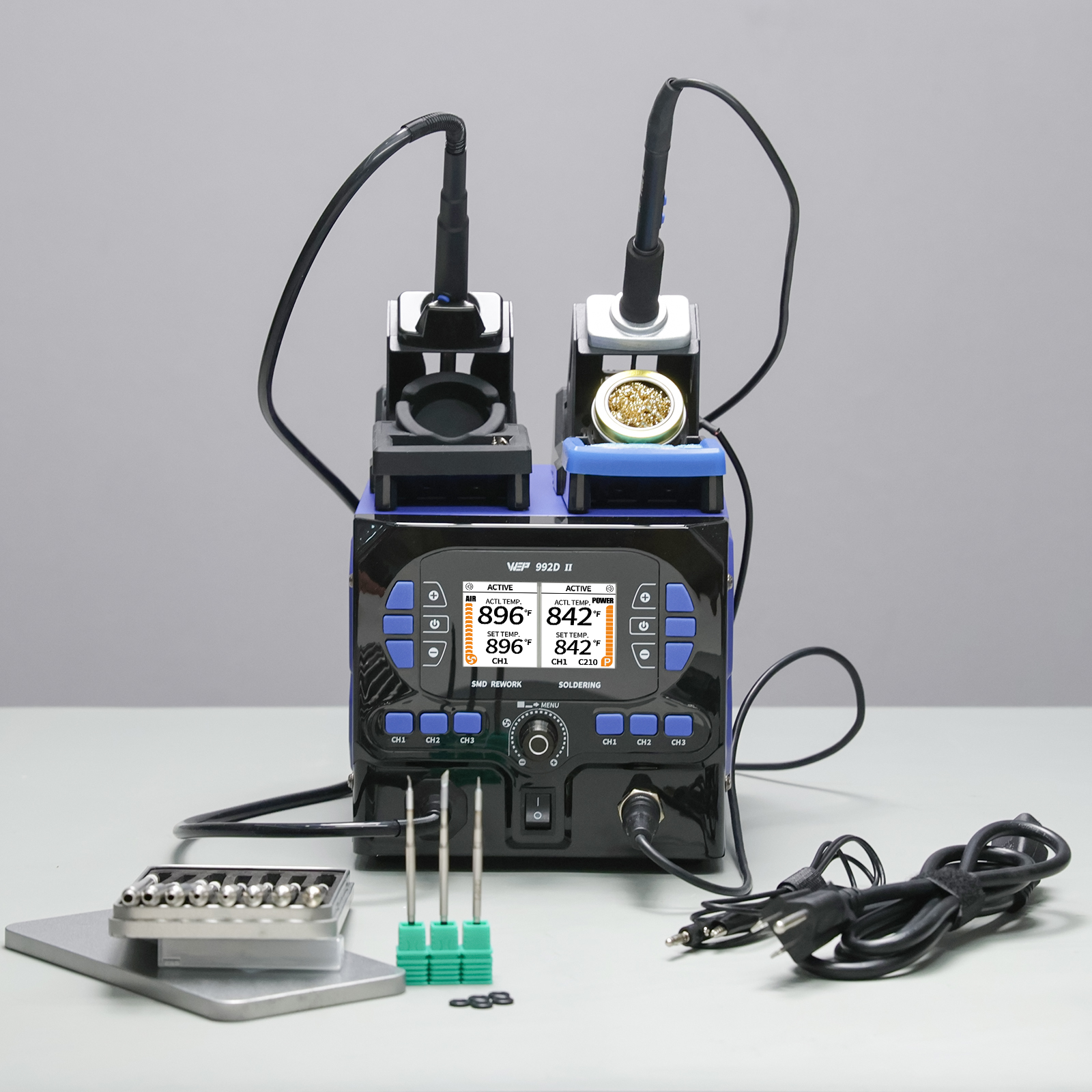

Package Includes:

3 x C210 Soldering Tips (I/SI/K)
8 x W575-D Cartridge Nozzles (⌀0.5/1.0/1.5/2.0/2.5/3.0/3.5/4.0mm)
1 x X-10 Hot Air Pencil Holder (with Protector)
1 x X-7 Soldering Iron Holder (with Tip Cleaner, Sponge)
1 x 716D Soldering Iron Handpiece
1 x 992D II Main Unit (Hot Air Pencil Built-in)
5 x Washer (Hot Air Pencil)
1 x AC Power Cord
1 x Grounding Wire

Precision Hot Air Station

Temp. Adjustable: 212~896°F
Temperature Control: Precision PID
Standby Mode: ✔
Manual Standby Mode: ✔
Cool Air Mode: ✔
Preset Channel: 3 Available

Precision Soldering Station

Adjustable: 392~842°F
Temperature Control: Precision PID
Sleep Mode: Activates in holder
Preset Channel: 3 Available

Precision Hot Air Station

Temp. Adjustable: 212~896°F
Temperature Control: Precision PID
Standby Mode: ✔
Manual Standby Mode: ✔
Cool Air Mode: ✔
Preset Channel: 3 Available

Precision Soldering Station

Adjustable: 392~842°F
Temperature Control: Precision PID
Sleep Mode: Activates in holder
Preset Channel: 3 Available

Functions Demo

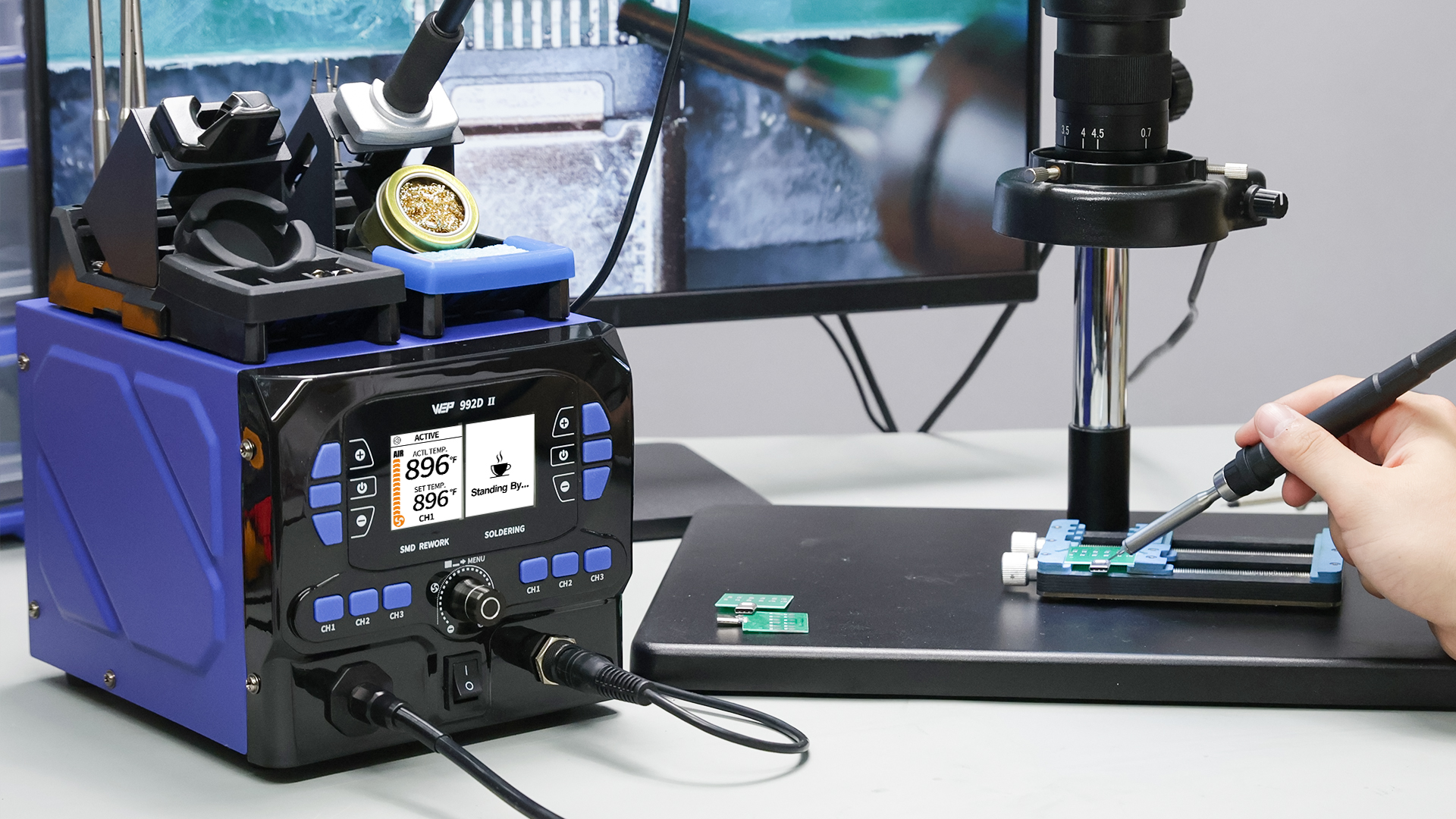

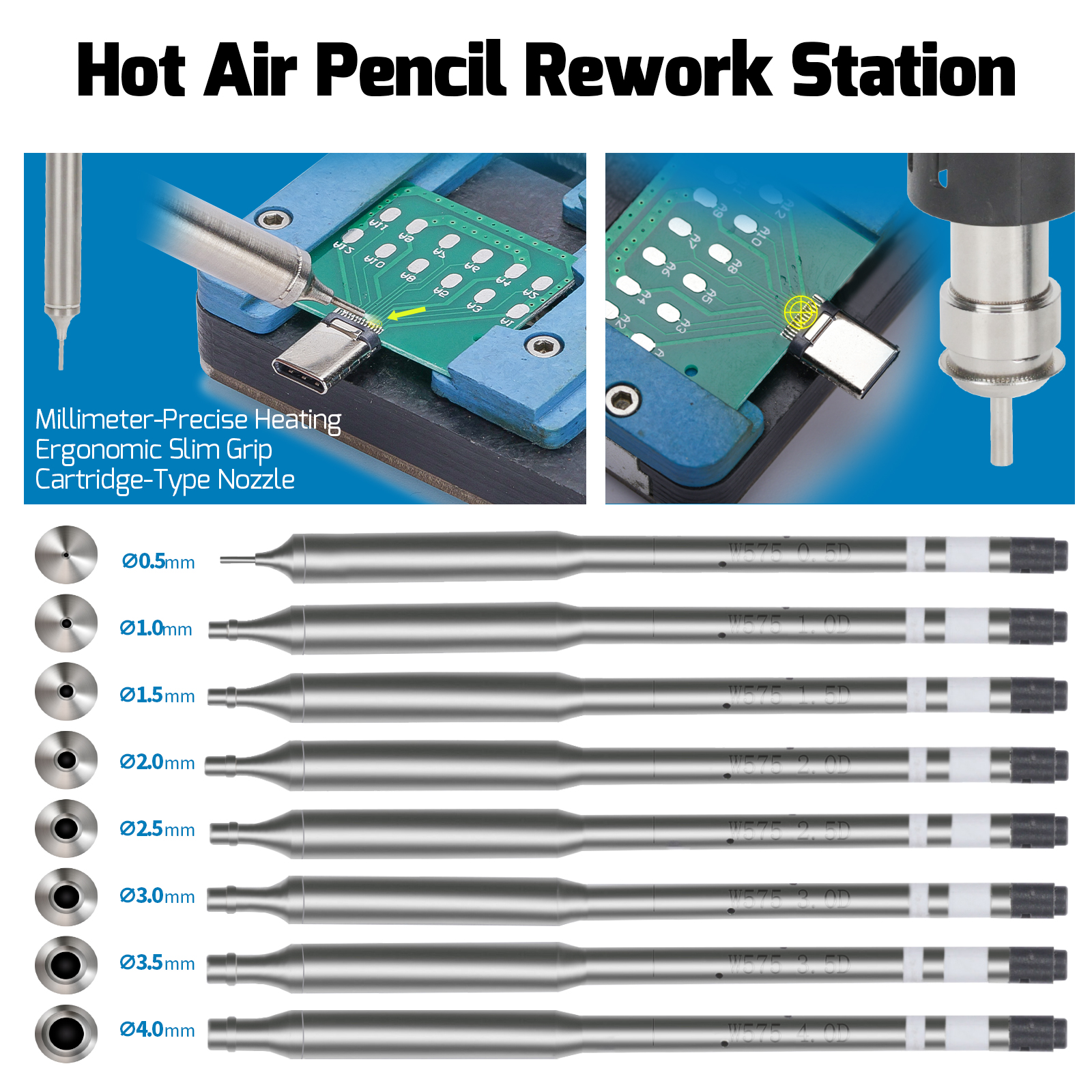

Hot Air Pencil
- Millimeter-Precise Heating: concentrated heating area avoids unwanted damages
- Slim Grip Design: precise handling for easy targeting.
- Cartridge-Type Nozzle: easy to change, replace, and are hot swappable

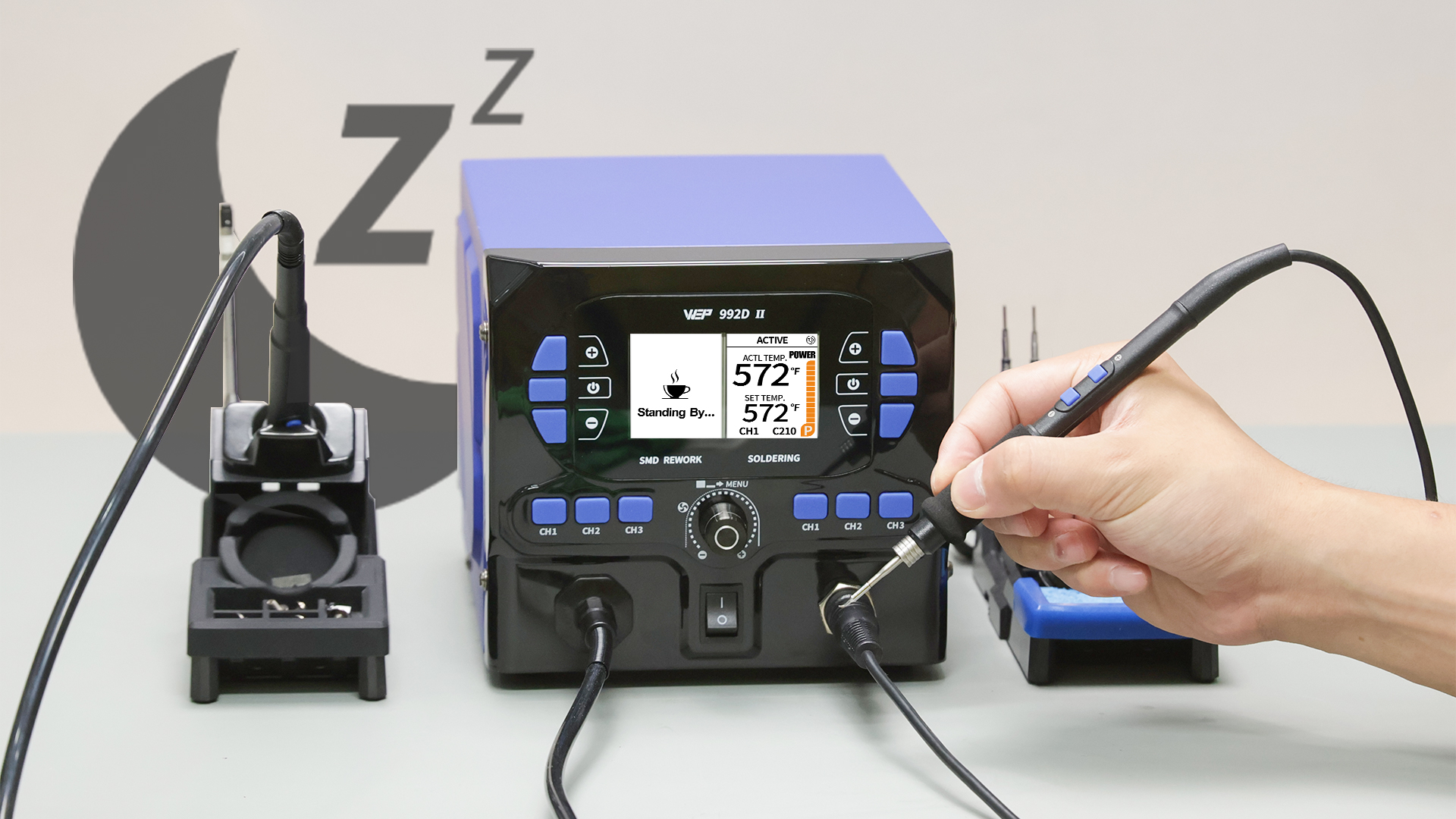

Sleep & Standby Mode
- The soldering iron enters sleep mode once inside the holder. Effectively reduce the oxidation and unnecessary wear for the soldering tip and heating element.
- Enters standby mode and stops heating once the timer finishes the countdown. Prevents user from leaving the unit turned ON unattended for an extended period.

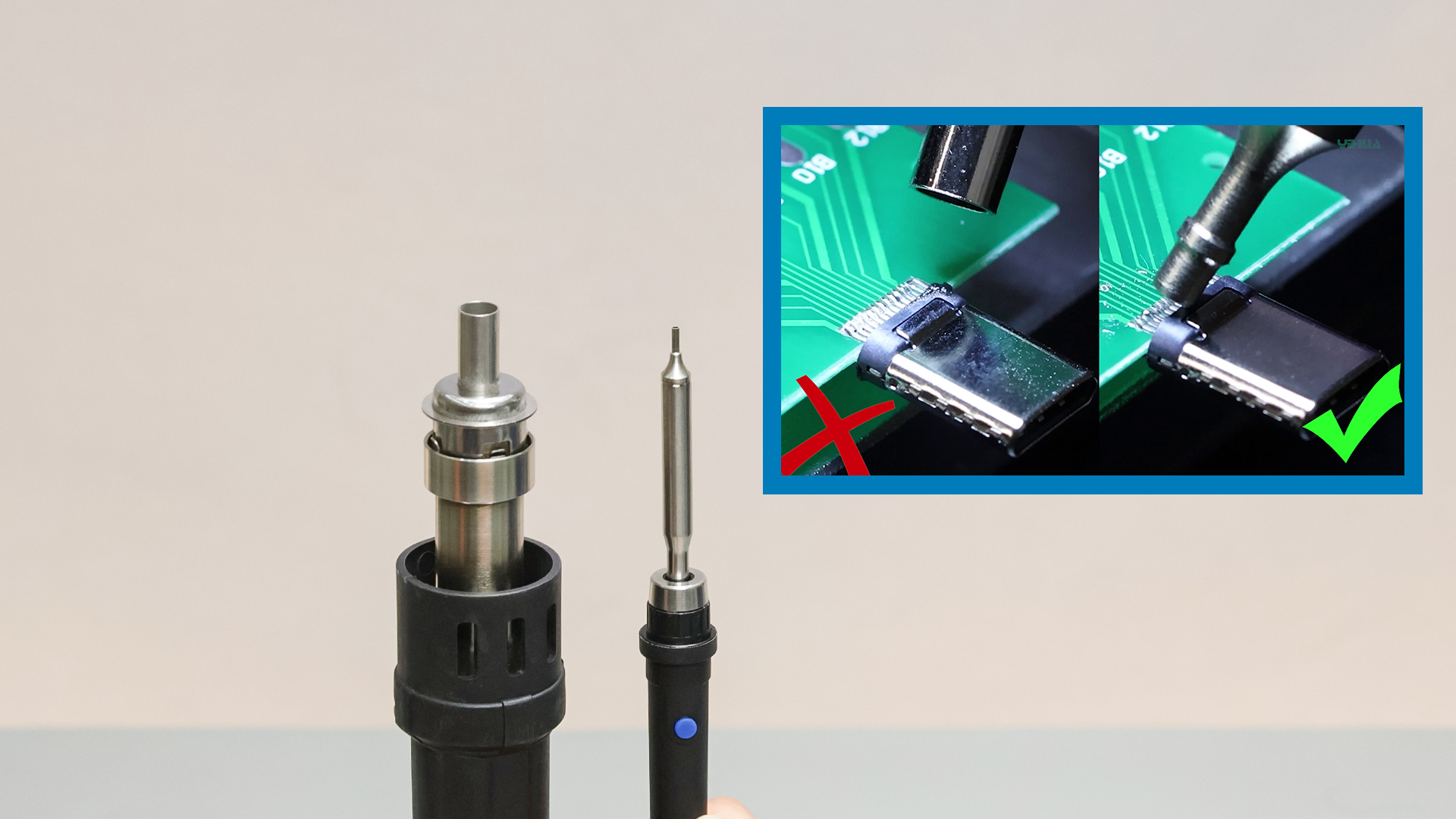

Case Study: Type-C Port Soldering
- Issue with standard hot air gun: the wide-spread of hot air damages plastic parts on the component.
- Advantage of hot air pencil: precise hot air delivery avoids heating the plastic parts while heating the pins on the component.

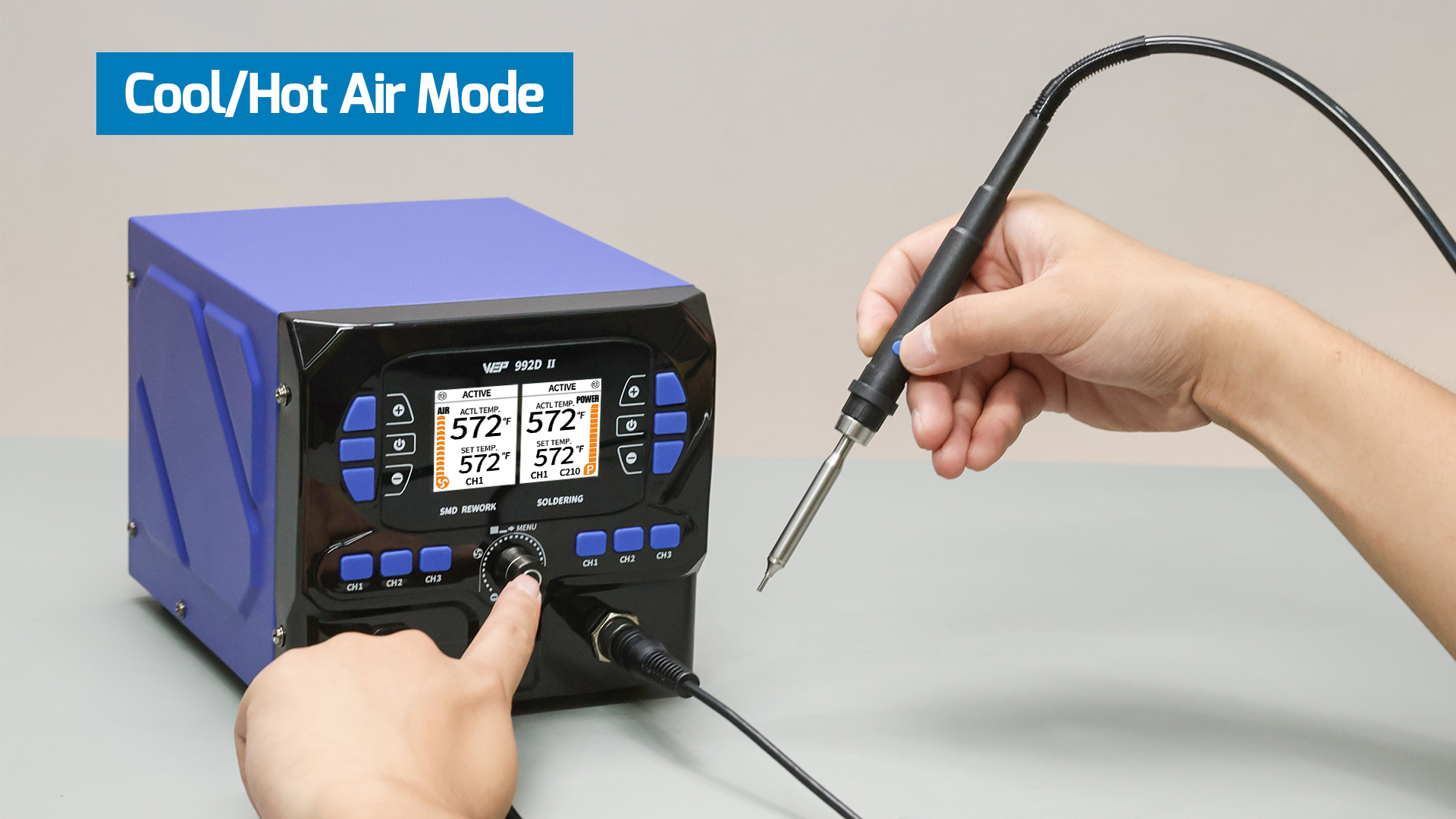

Cool/Hot Air Mode

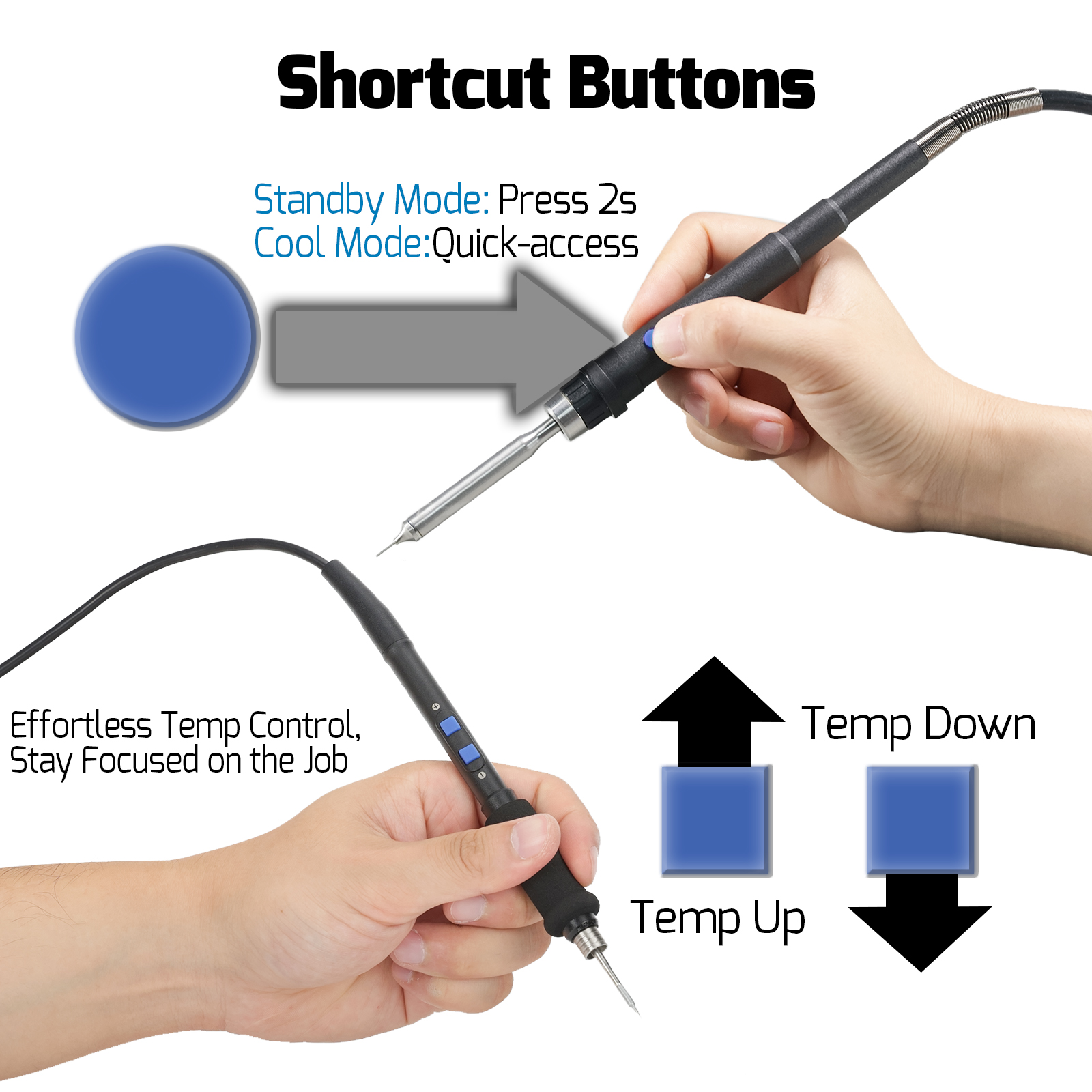

- Quick-access button
- Manually enter standby mode without the pen inside the holder
- Cool air for cooling the PCB quickly /clean off dust

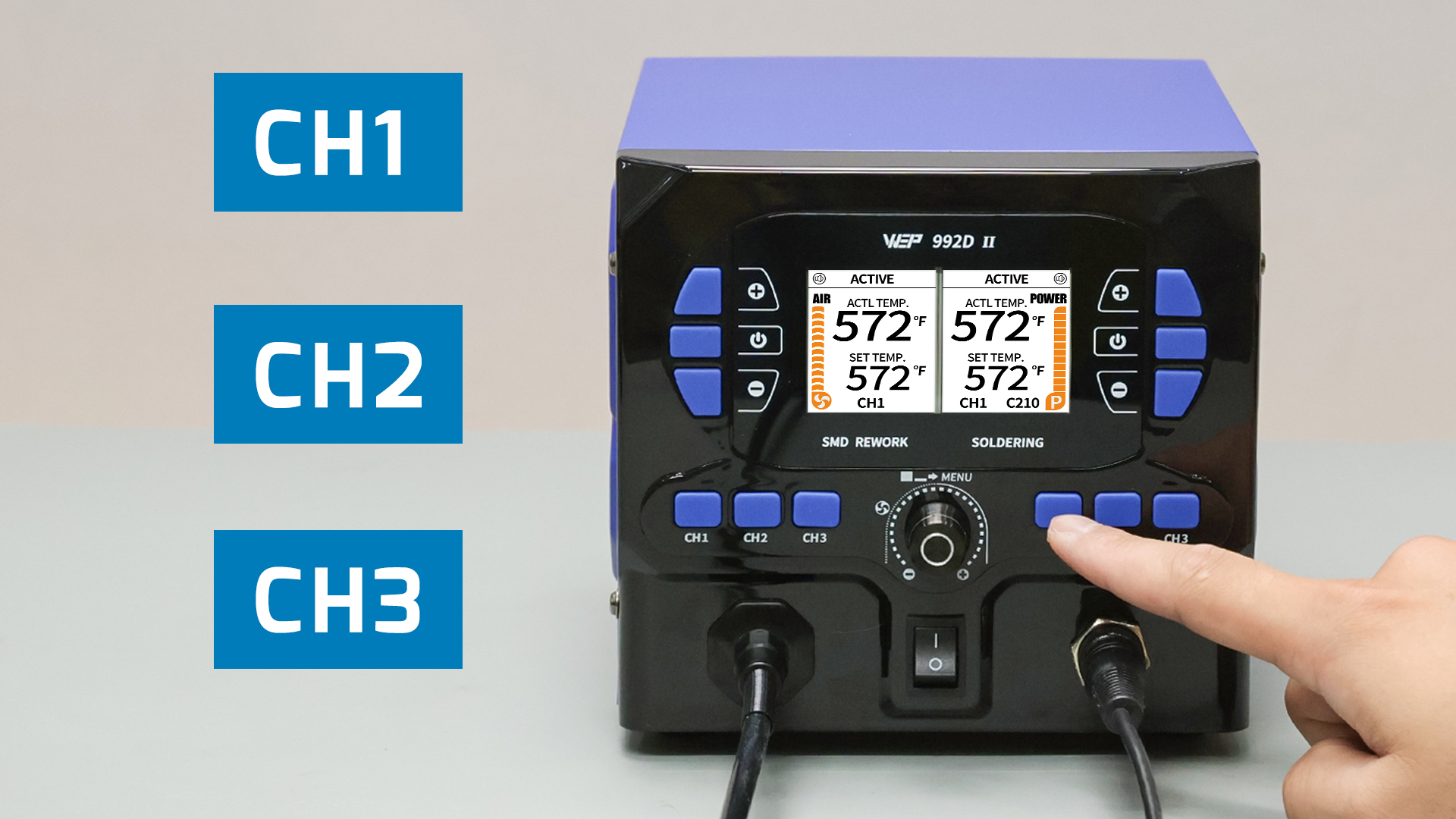

3 Preset Channels
- Memorizes 3 custom temp/airflow combos (hot air) or 3 temps (soldering) with ease, you can select any with just one press.
- No more fiddling around when having to change settings.

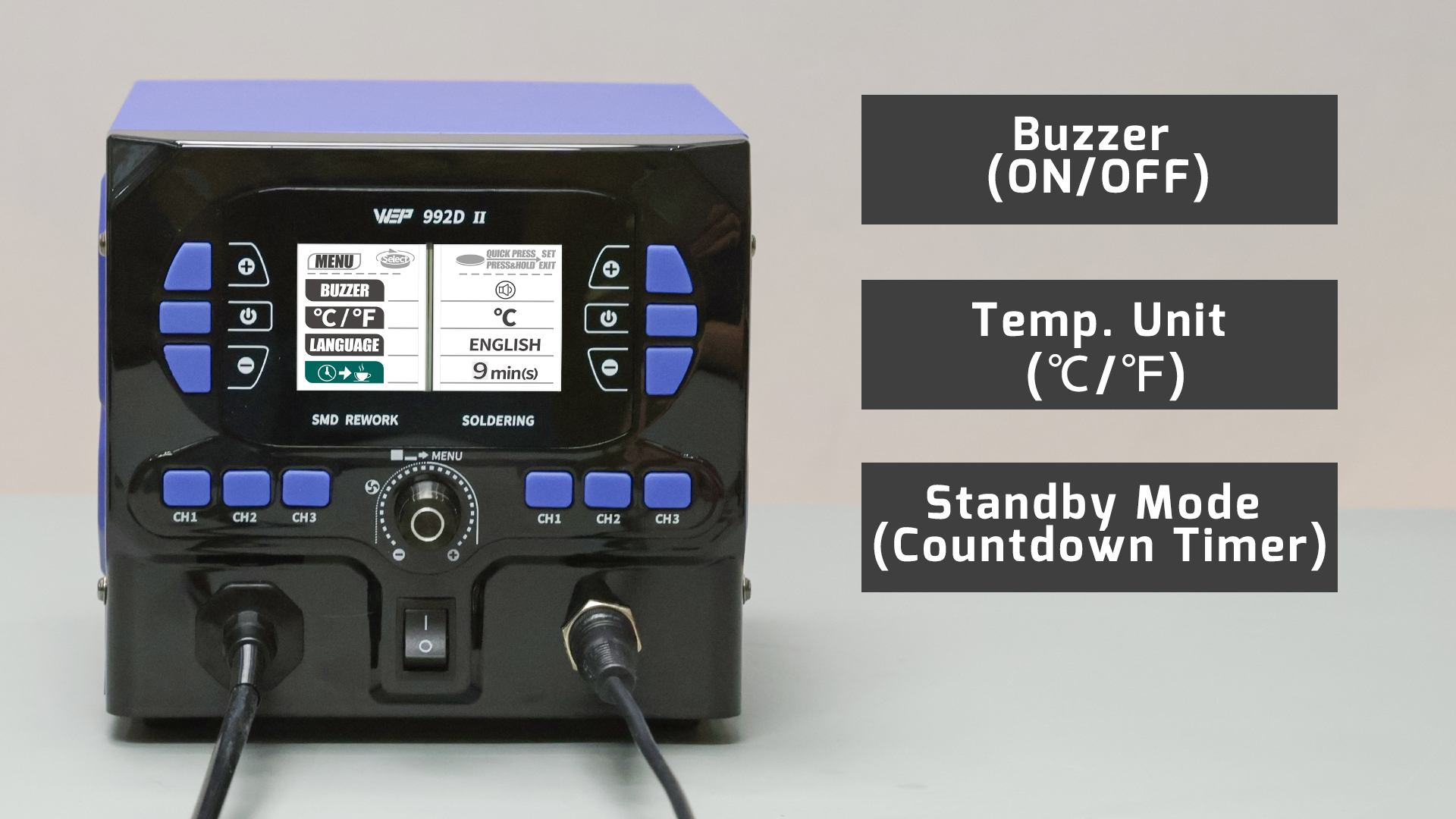

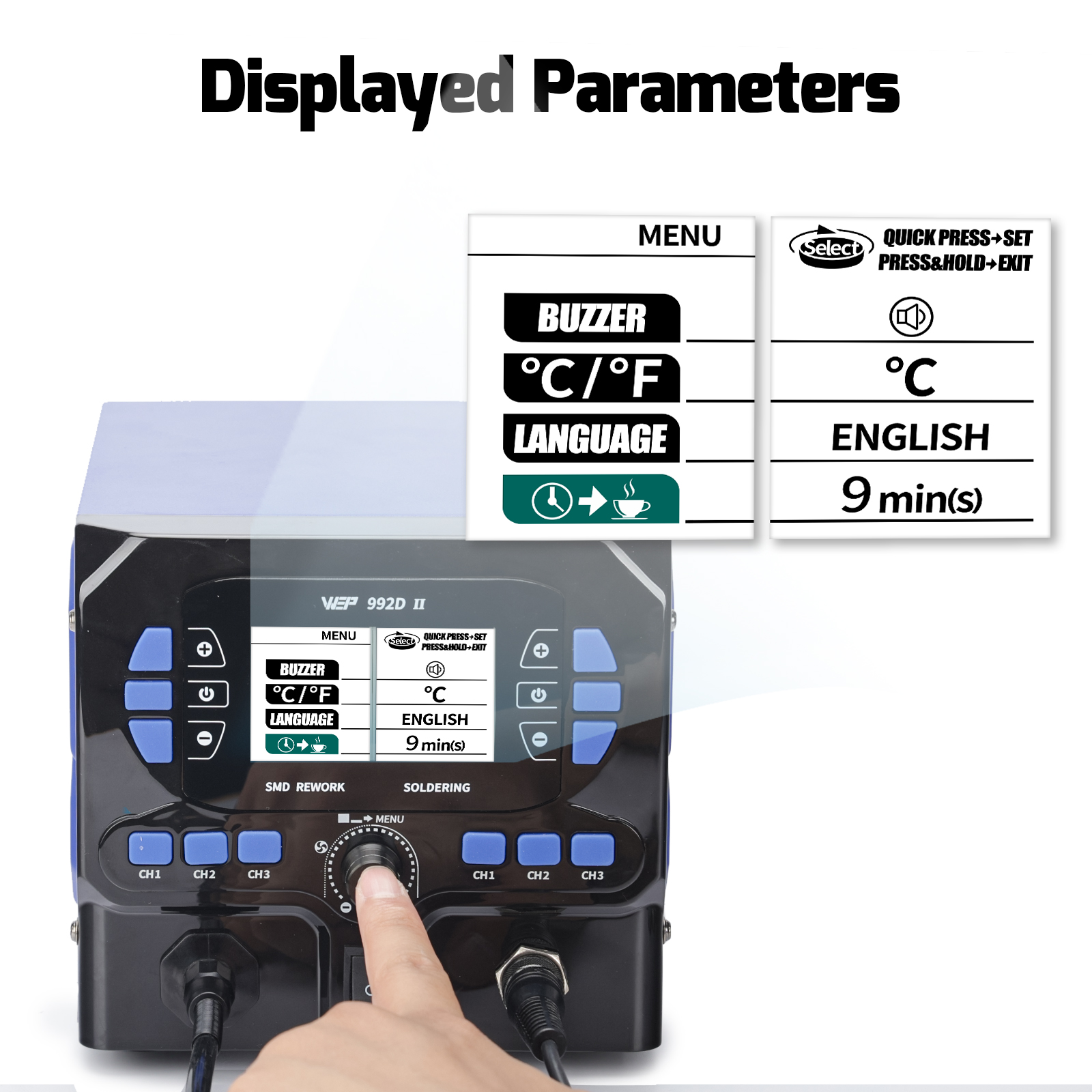

Configurable Functions
- Buzzer (ON/OFF)
- Temp. Unit (℃/℉)
- Standby Mode (Countdown Timer)
Temperature Calibration
- No troublesome mathematic calculations needed.
- Enter the measured temperature value and the unit automatically compensates for the differentials.

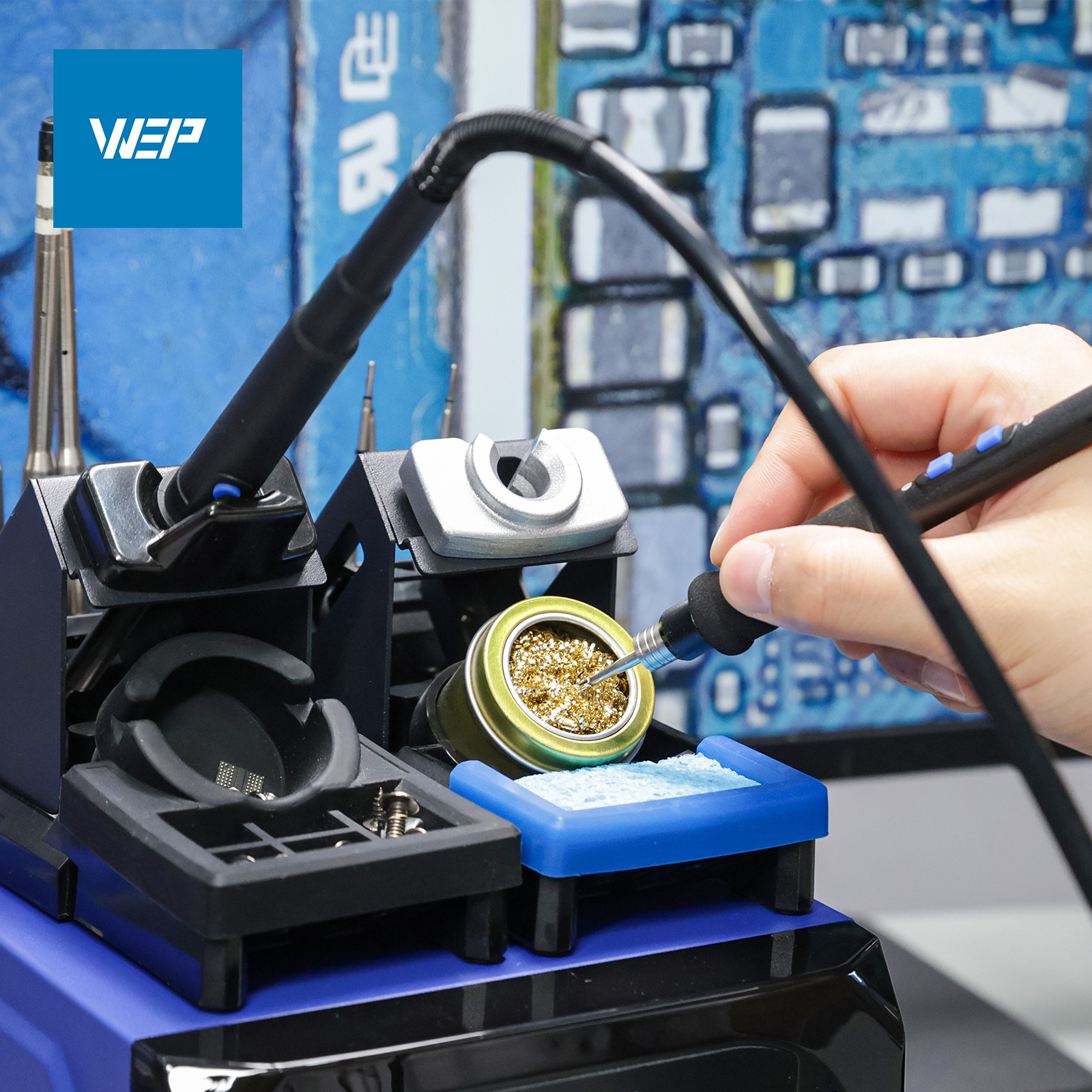

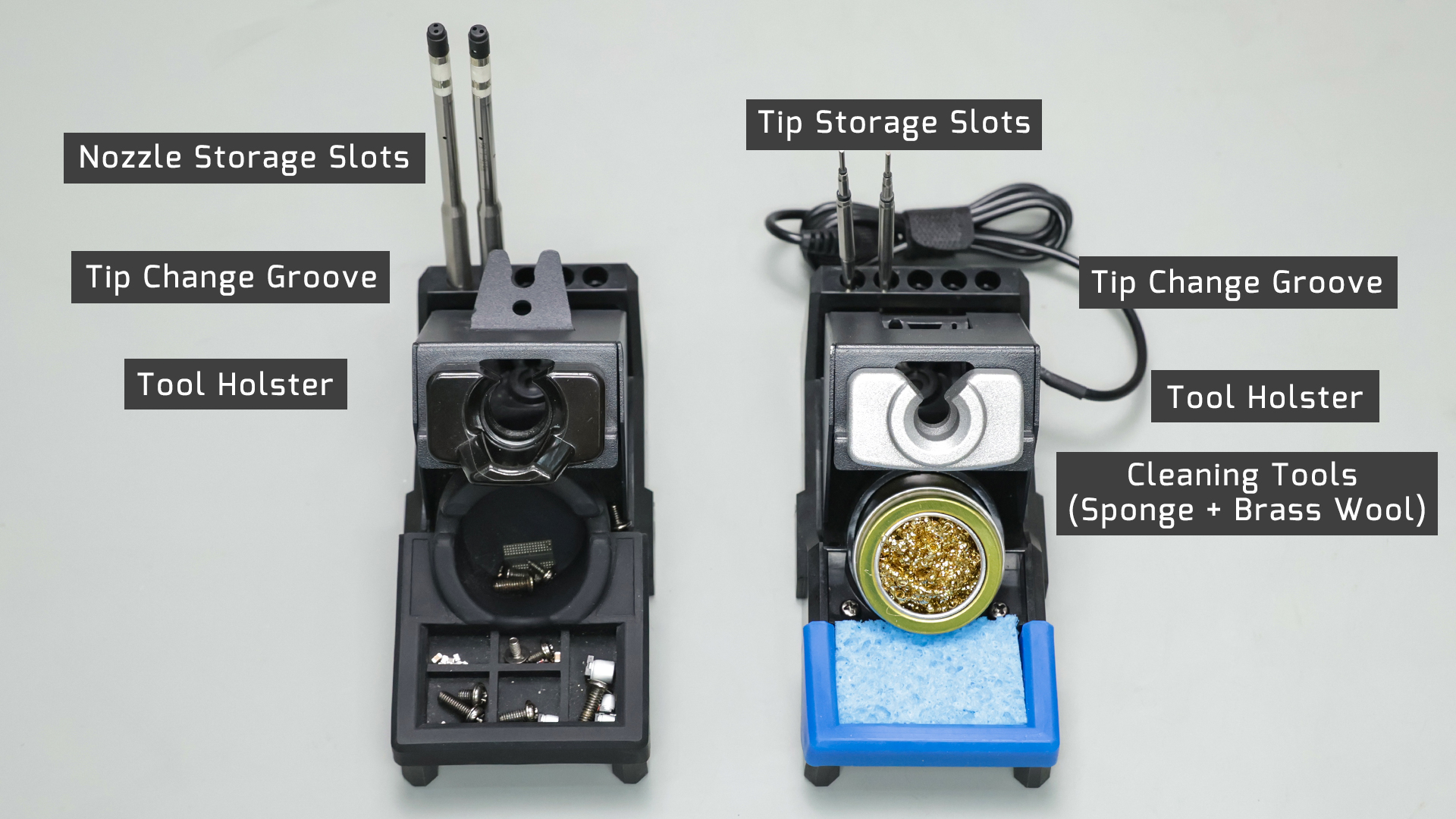

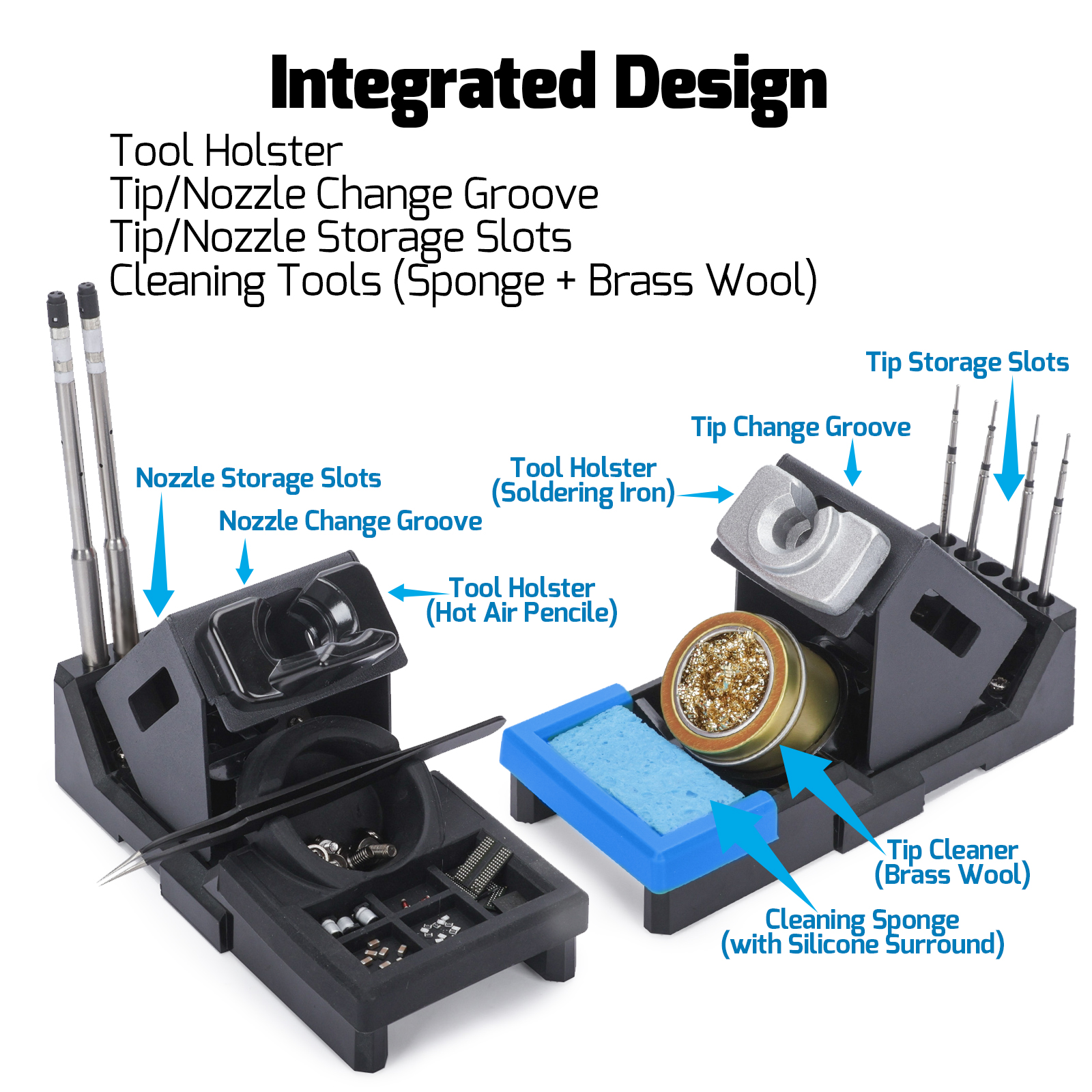

Integrated Design
- Tool Holster

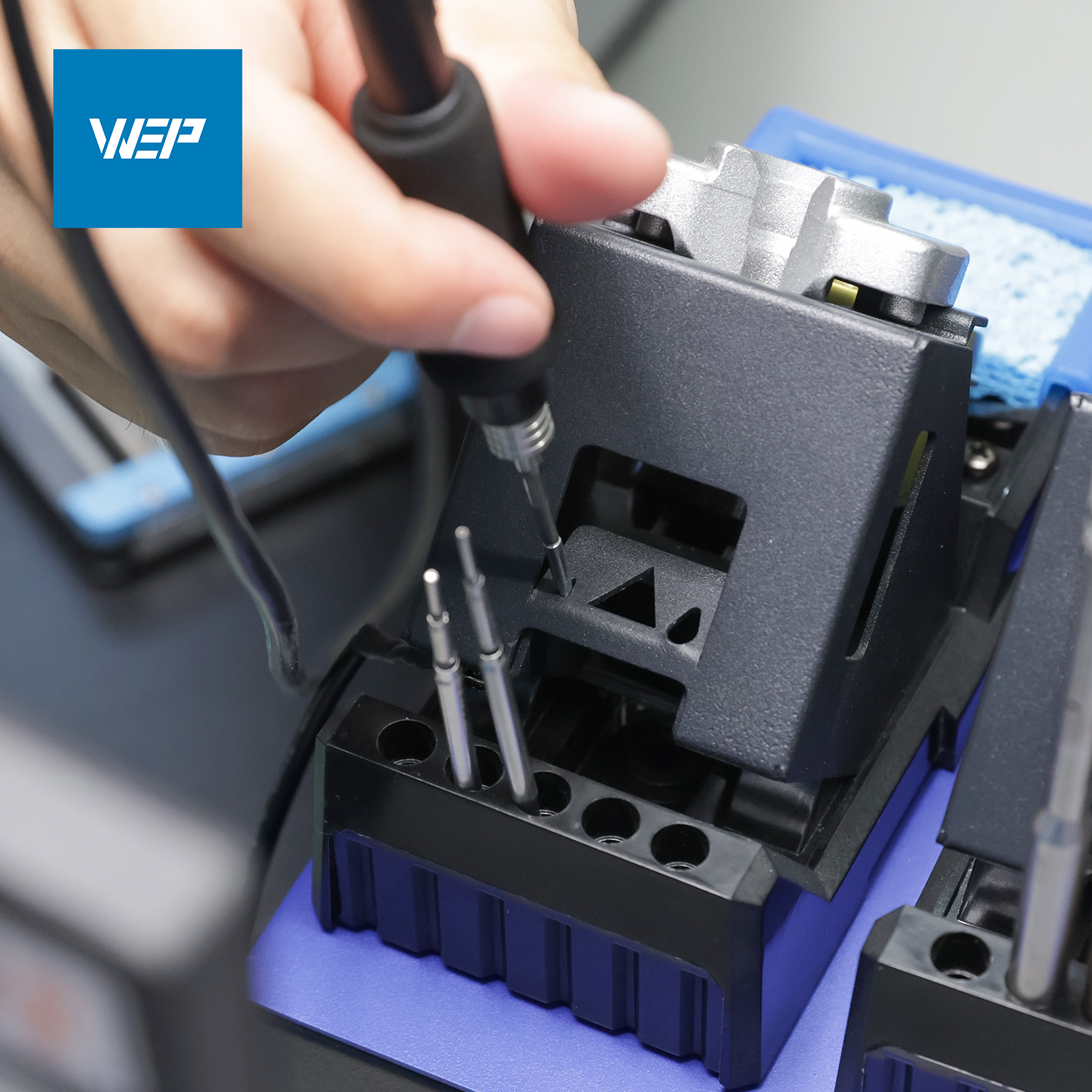

- Tip/Nozzle Change Groove
- Tip/Nozzle Storage Slots
- Cleaning Tools (Sponge + Brass Wool)

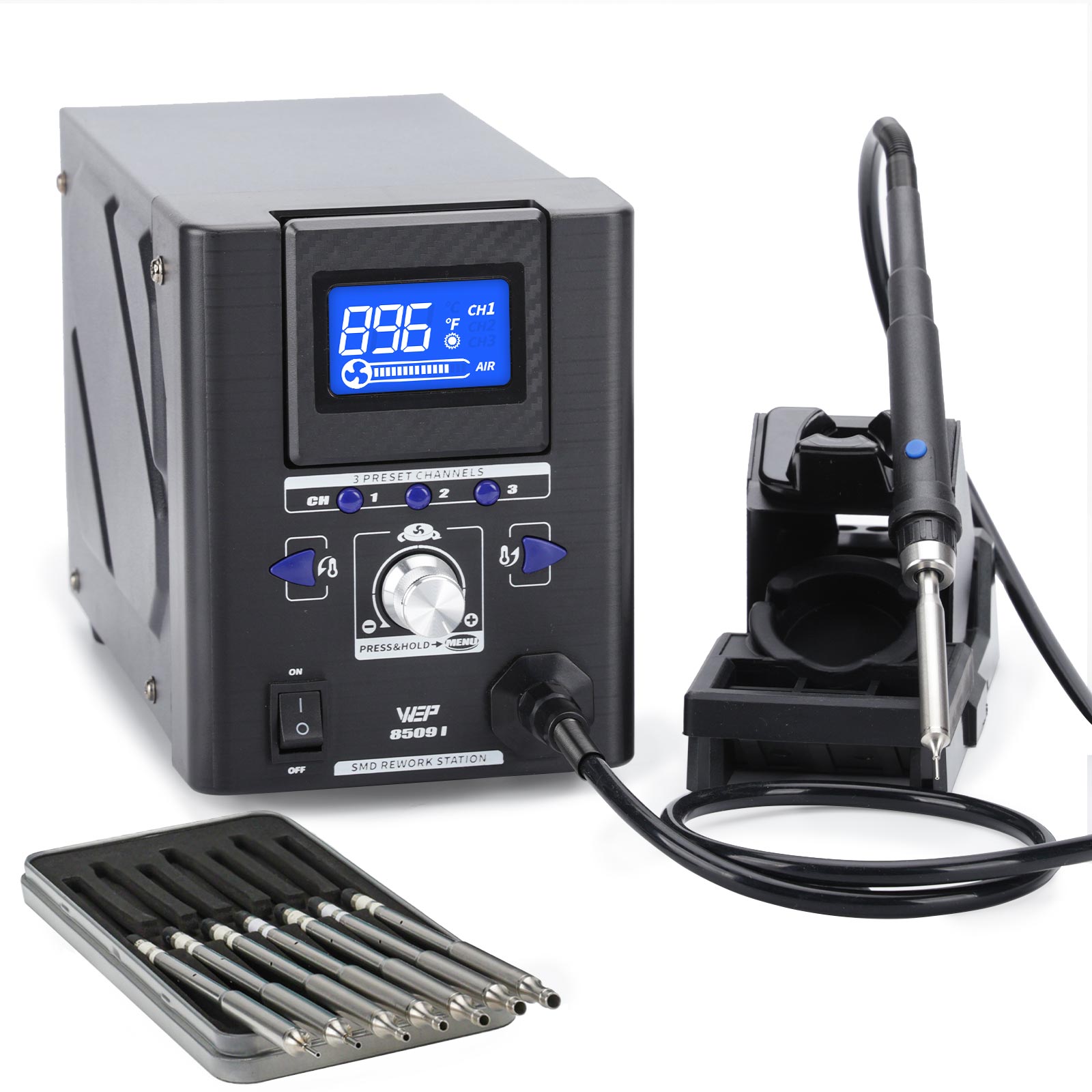

	W575 Hot Air Pen Nozzles	C210 Soldering Iron Tips	C245 Soldering Iron Tips	992D III 2-IN-I Hot Air Rework Station	8509 I Hot Air Pencil Rework Station
